Industrial Global Shutter Cameras OPT-CC1-C023-GG1-01
- Adopts brand new design to reduce power consumption.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hard trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C023-GG1-01 |
| Resolution |
1920x1200 |
| Pixel Size(μ㎡) |
5.86 x 5.86 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX249 |
| Frame Rate(FPS) |
41 |
| Sensor Format |
1/1.2” |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
15 μs to 10 sec |
| Image Format |
Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Gain(dB) |
0 dB ~ 24 dB |
| Dynamic Range(dB) |
72.6 dB |
| Power Supply |
9 VDC to 24 VDC, supports PoE |
| Weight |
Approx. 100 g (0.22 lb.) |
| Power Consumption（W） |
Typ. 2.6 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

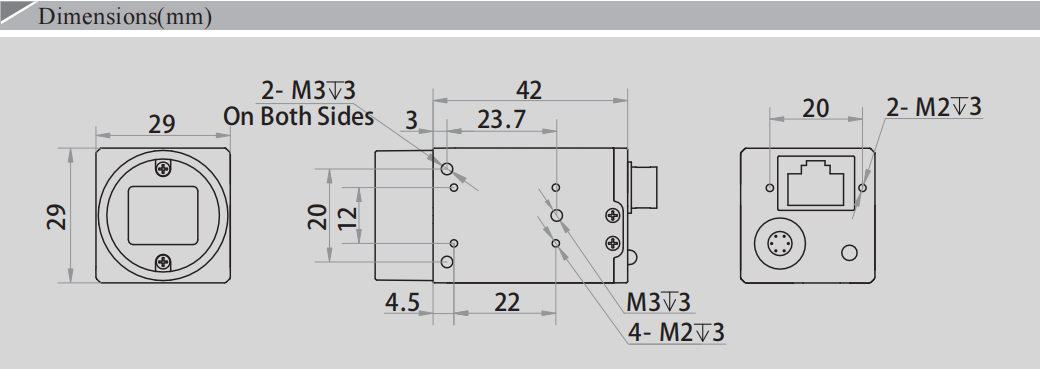

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
