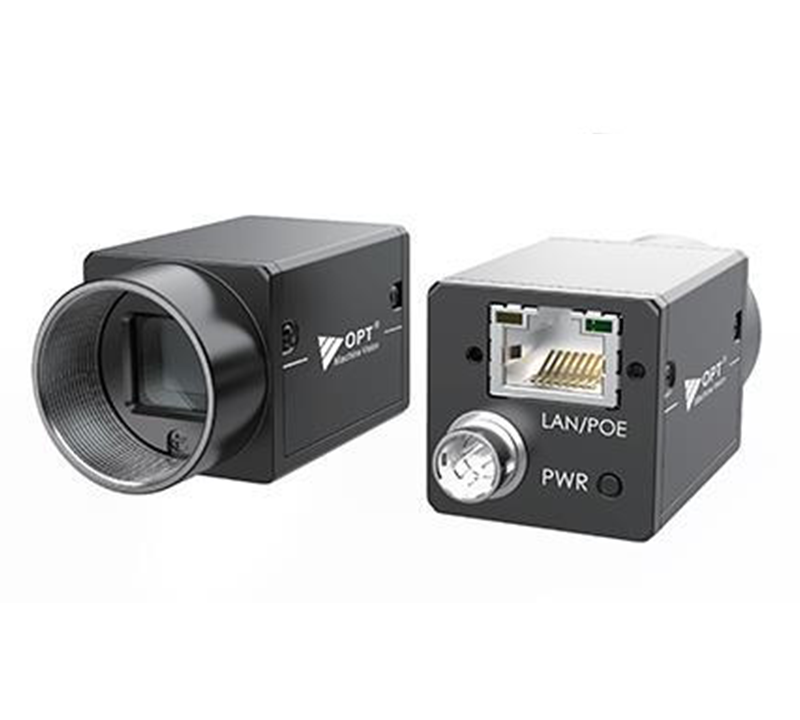

    Industrial Global Shutter Cameras OPT-CC1-C050-GG1-02

    • Adopts brand new design to reduce power consumption.
    • Supports multiple ISP functions like CCM to provide high quality images.
    • Compact design with mounting holes on panels for flexible mounting from 4 sides.
    • Adopts GigE interface and max. transmission distance of 100 meters without relay.
    • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.


    Features
    Model OPT-CC1-C050-GG1-02
    Resolution 2448x2048
    Pixel Size(μ㎡) 3.45x3.45
    Sensor Type CMOS Global
    Shutter Global
    Sensor IMX264
    Frame Rate(FPS) 24.2
    Sensor Format 2/3"
    Interface GigE PoE
    Lens Mount C
    Exposure Time UltraShort exposure mode: 1 μs to 14 μs;Standard exposure mode: 15 μs to 10 sec
    Image Format Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
    Gain(dB) 0 dB to 24 dB
    Dynamic Range(dB) 72 dB
    Power Supply 9 VDC to 24 VDC, supports PoE
    Weight Approx. 100 g (0.22 lb.)
    Power Consumption(W) Typ. 2.9 W@12 VDC
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

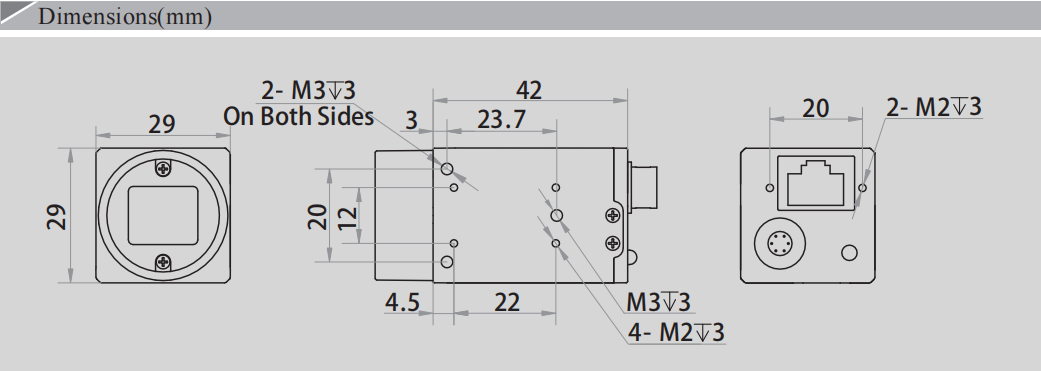

    Dimensions 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
    Mono/Color C
