    Camera & Optics

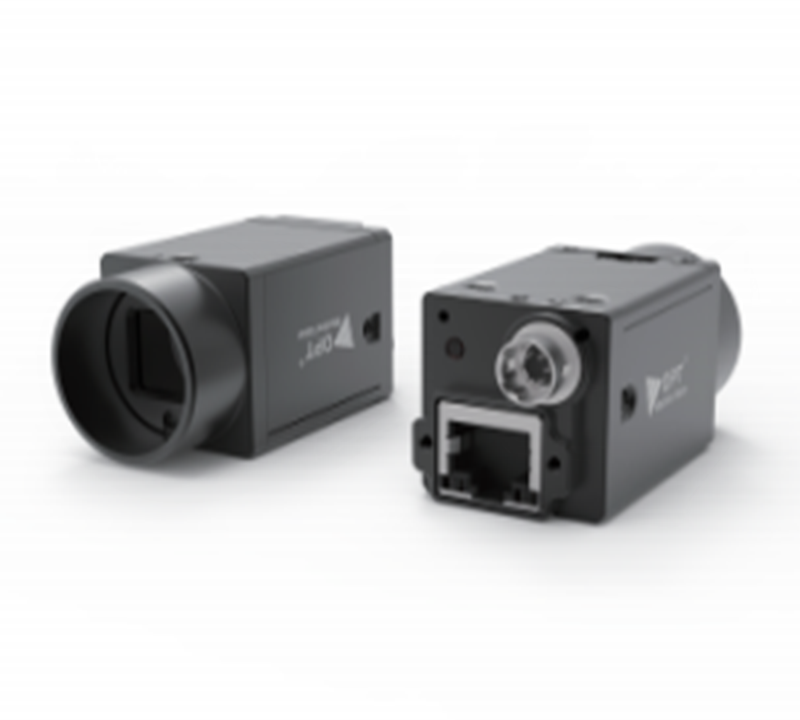

    Industrial Global Shutter Cameras OPT-CC1-M004-GG1-02

    • Adopts low power consumption design with stable performance.
    • Supports auto and manual adjustment of gain, exposure time, etc.
    • Supports hardware trigger, software trigger, free run, etc.
    • Adopts GigE interface and max. transmission distance of 100 meters without relay.
    • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.


    Features
    Model OPT-CC1-M004-GG1-02
    Resolution 720x540
    Pixel Size(μ㎡) 6.9x6.9
    Sensor Type CMOS Global
    Shutter Global
    Sensor IMX297
    Frame Rate(FPS) 126.5
    Sensor Format 1/2.9"
    Interface GigE PoE
    Lens Mount C
    Exposure Time UltraShort exposure mode: 1 μs to 14 μs;Standard exposure mode: 15 μs to 10 sec
    Image Format Mono 8/10/10Packed/12/12Packed
    Gain(dB) 0 dB ~ 24 dB
    Dynamic Range(dB) 74 dB
    Power Supply 9 VDC to 24 VDC
    Weight Approx. 100 g (0.2 lb.)
    Power Consumption(W) Typ. 2 W@12 VDC
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non Isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Dimensions 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
    Mono/Color M

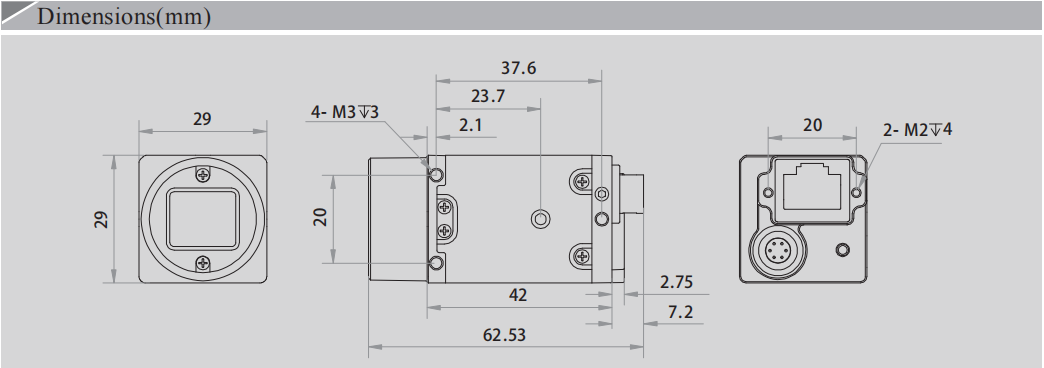

    size-industrial-global-shutter-cameras-opt-cc1-m004-gg1-02
