    Industrial Global Shutter Cameras OPT-CC1-M023-GG1-01

    • Adopts brand new design to reduce power consumption.
    • Compact design with mounting holes on panels for flexible mounting from 4 sides.
    • Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
    • Supports hard trigger, software trigger, free run, etc.
    • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.


    Features
    Model OPT-CC1-M023-GG1-01
    Resolution 1920x1200
    Pixel Size(μ㎡) 5.86 x 5.86
    Sensor Type CMOS Global
    Shutter Global
    Sensor IMX249
    Frame Rate(FPS) 41
    Sensor Format 1/1.2”
    Interface GigE PoE
    Lens Mount C
    Exposure Time 15 μs to 10 sec
    Image Format Mono 8/10/10Packed/12/12Packed
    Gain(dB) 0 dB ~ 24 dB
    Dynamic Range(dB) 72.6 dB
    Power Supply 9 VDC to 24 VDC, supports PoE
    Weight Approx. 100 g (0.22 lb.)
    Power Consumption(W) Typ. 2.2 W@12 VDC
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

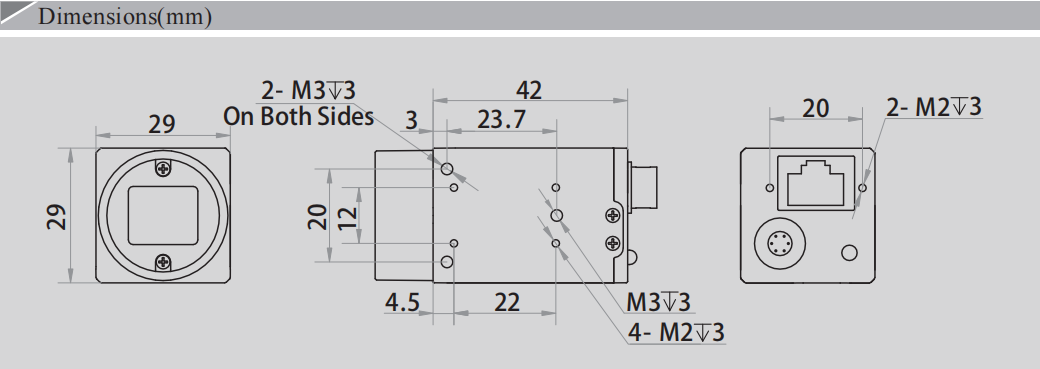

    Dimensions 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
    Mono/Color M
