    Industrial Global Shutter Cameras OPT-CC1-M050-GG3-01

    • Adopts brand new design to reduce power consumption.
    • Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
    • Supports customized ROI, horizontal and vertical reverse image output.
    • Compatible with GigE Vision V2.0 Protocol, GenlCamStandard, and third-party software based on the protocol and standard.


    Features
    Model OPT-CC1-M050-GG3-01
    Resolution 2600x2160
    Pixel Size(μ㎡) 2.5 x 2.5
    Sensor Type CMOS Global
    Shutter Global
    Sensor GMAX2505
    Frame Rate(FPS) 21
    Sensor Format 1/2 ”
    Interface GigE PoE
    Lens Mount C
    Exposure Time 3 μs to 10 sec
    Image Format Mono 8/10/10Packed/12/12Packed
    Gain(dB) 0 dB to 12 dB
    Dynamic Range(dB) 63.8 dB
    Power Supply 9 VDC to 24 VDC
    Weight Approx. 117 g (0.3 lb.)
    Power Consumption(W) Typ. 2.3 W@12 VDC
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)

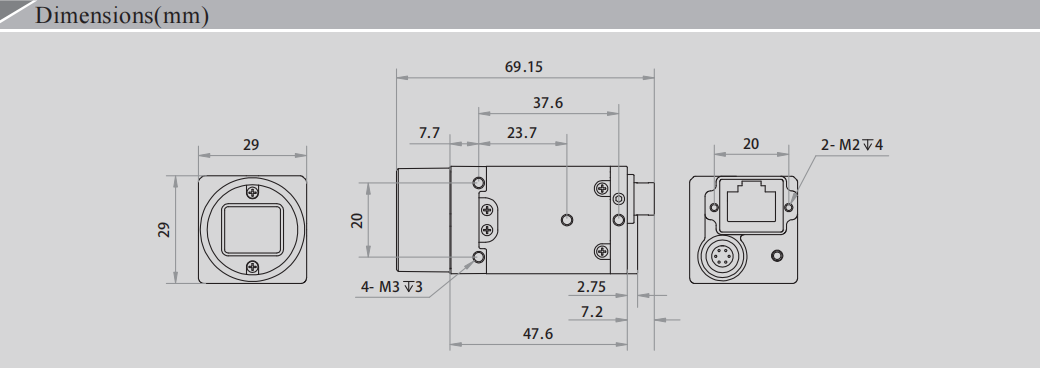

    Dimensions 29 mm × 29 mm × 47.6 mm (1.1" × 1.1" × 1.9")
    Mono/Color M

    size-industrial-global-shutter-cameras-opt-cc1-m050-gg3-01
