Industrial Global Shutter Cameras OPT-CC130-UM-0401
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface.
- Compact size of 29mmx29mmx29mm.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Binning/Mirror,etc.
- Compatible with USB3 Vision protocol and GenICam standard.
Features
| Model |
OPT-CC130-UM-0401 |
| Resolution |
1280×1024 |
| Pixel Size(μ㎡) |
4.0x4.0 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
SS |
| Frame Rate(FPS) |
201 |
| Sensor Format |
1/2.7" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
10μs-1s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
60dB |
| Power Supply |
power supply via USB interface/ DC 9V~24V power supply via Hirose interface |
| Weight |
68g |
| Power Consumption（W） |
≈2.8W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output |

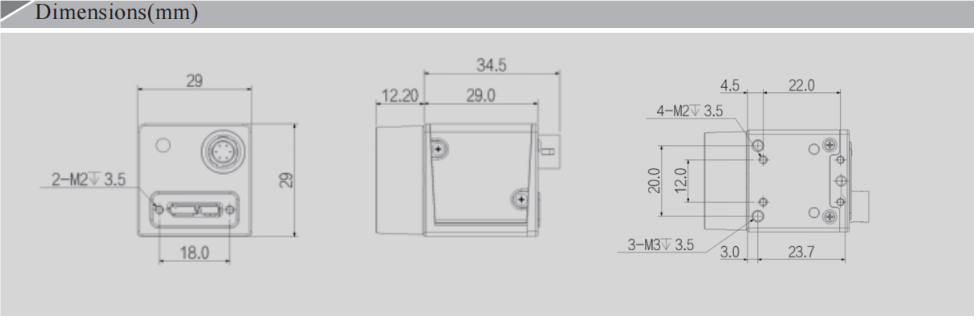

| Dimensions |
29mm×29mm×29mm |
| Conformity |
Compatible with USB3 Vision protocol and GenICam standard |
| Mono/Color |
C |
