Industrial Global Shutter Cameras OPT-CC300-UM-04
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface.
- Support Software Trigger/Hardware Trigger/Software /amp;Hardware Hybrid Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel.
- Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.
Features
| Model |
OPT-CC300-UM-04 |
| Resolution |
2048×1536 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX252 |
| Frame Rate(FPS) |
120 |
| Sensor Format |
1/1.8" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
20μs~1s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
＞70dB |
| Power Supply |
power supply via USB interface/ DC 9V~24V auxiliary power supply via Hirose interface |
| Weight |
60g |
| Power Consumption（W） |
≈3.91W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

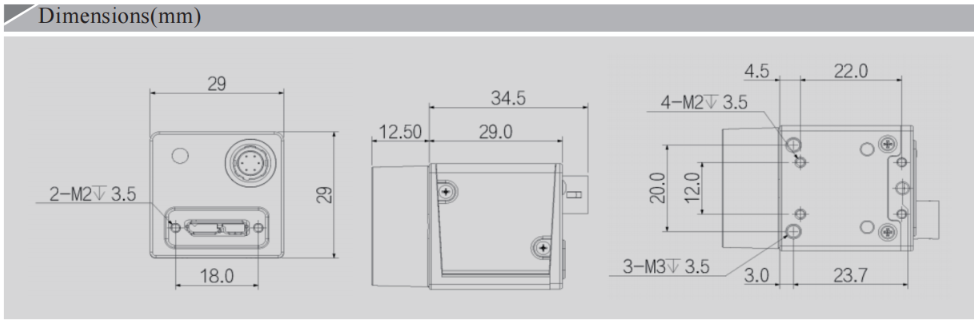

| Dimensions |
29mm×29mm×29mm |
| Conformity |
Compatible with USB3 Vision protocol and GenICam standard; |
| Mono/Color |
C |
