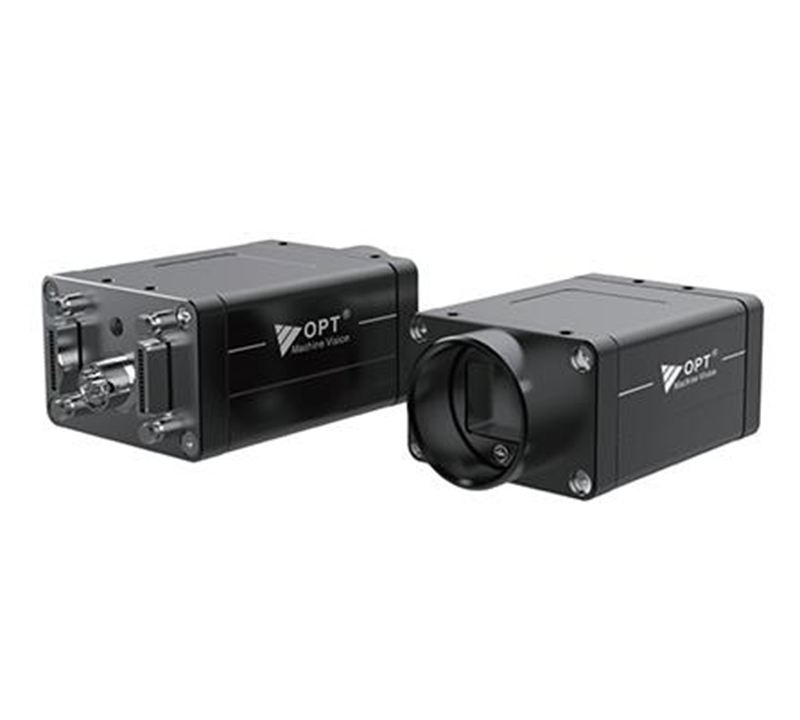

Industrial Global Shutter Cameras OPT-CC500-LM-04
- Camera Link,suppport base/medium/Full/deca mode.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support multiple image data formats output/ROI/Mirror,etc.
- Compatible with Camera Link V2.0 Protocol and GenICam standard.
- Compatible with GenCP V1.1 protocol.
- Support PoCL power supply.
- Comform to CE,FCC,RoHS.
Features
| Model |
OPT-CC500-LM-04 |
| Resolution |
2448×2048 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX250 |
| Frame Rate(FPS) |
150 |
| Sensor Format |
2/3" |
| Interface |
Camera Link (SDR) |
| Lens Mount |
C-Mount |
| Exposure Time |
16μs~1s |
| Image Format |
BayerRG8/BayerGB8 |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
70dB |
| Power Supply |
POE/DC 9V to 24V power supply Viia Hirose interface |
| Weight |
100g |
| Power Consumption（W） |
≈3W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

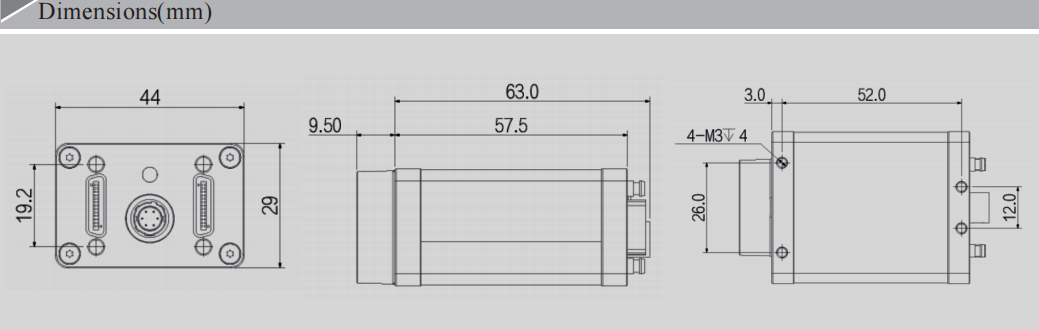

| Dimensions |
29mm×44mm×58mm |
| Conformity |
Compatible with Camera Link V2.0 Protocol and GenICam standard; |
| Mono/Color |
C |
