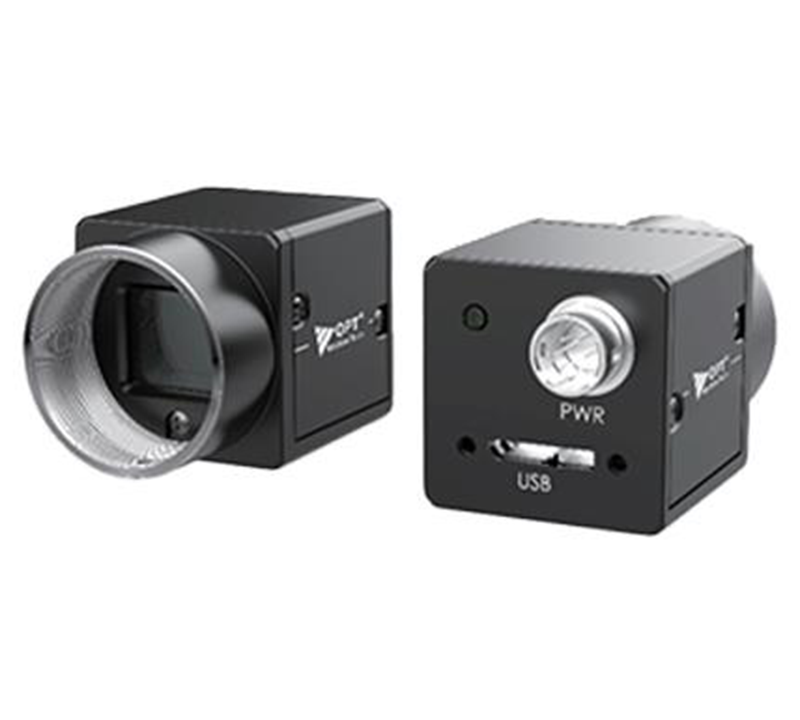

Industrial Global Shutter Cameras OPT-CC500-UM-1601
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CC500-UM-1601 |
|---|---|
| Resolution | 2448×2048 |
| Pixel Size(μ㎡) | 3.45x3.45 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | IMX250 |
| Frame Rate(FPS) | 74 |
| Sensor Format | 2/3" |
| Interface | USB3.0 |
| Lens Mount | C |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Image Format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8，BGR 8 |
| Gain(dB) | 0 dB ~ 20 dB |
| Dynamic Range(dB) | 75.4 dB |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight | Approx. 80g (0.2 lb.) |
| Power Consumption（W） | Typ. 3.5 W@5 VDC (USB3.0 provides power supply) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Dimensions | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color | C |
