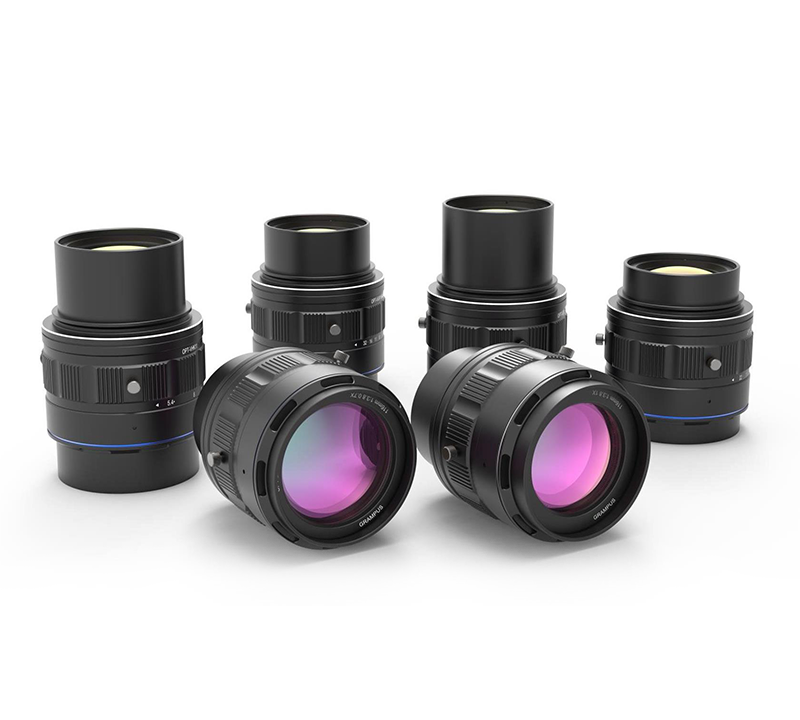

Industrial Grampus Series Line Scan Lenses OPT-VGP116/4.8-0.5X
- Large image circle
- Low distortion
- Wide magnification range
[l] Distortion at primary magnification.
Features
Size
Applications
| Model | OPT-VGP116/4.8-0.5X |
|---|---|
| Focal Length(mm) | 116 |
| Working Distance(mm) | 353.0 | 312.1 | 273.4 |
| Aperture(F/#) | F4.8-F22 |
| Magnification（X） | 0.425X | 0.50X | 0.60X |
| Image Circle Ø(mm) | 82 |
| Distortion | 0.122% | 0.028% | 0.09% |
| Flange Focal Distance(mm) | 131.3 | 140.0 | 151.6 |
| Object To Image Distance(mm) | 542.5 | 510.3 | 483.2 |
| Mount | V58 |
| Weight(kg) | 0.52 |
| Filter Thread | M58×0.75-6H |
