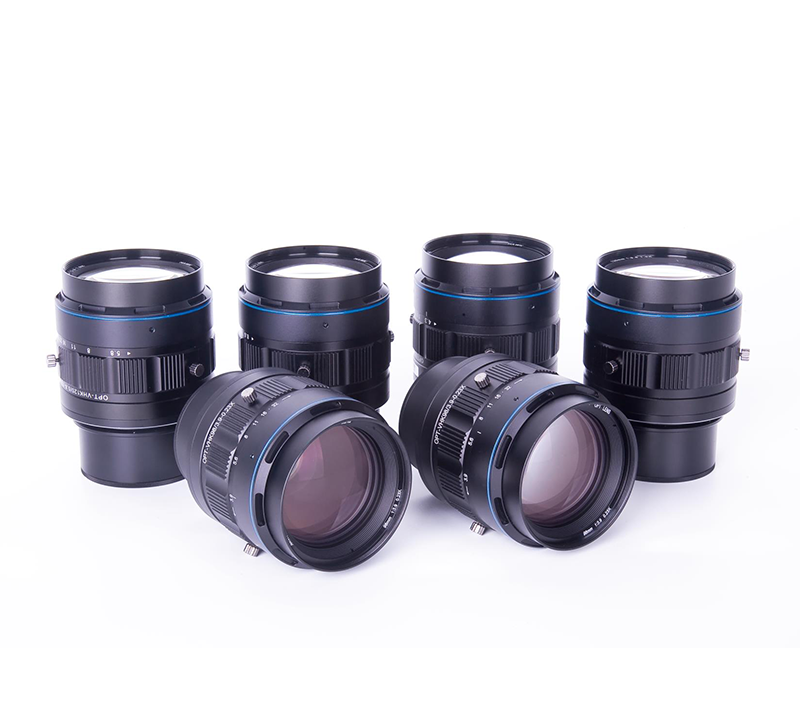

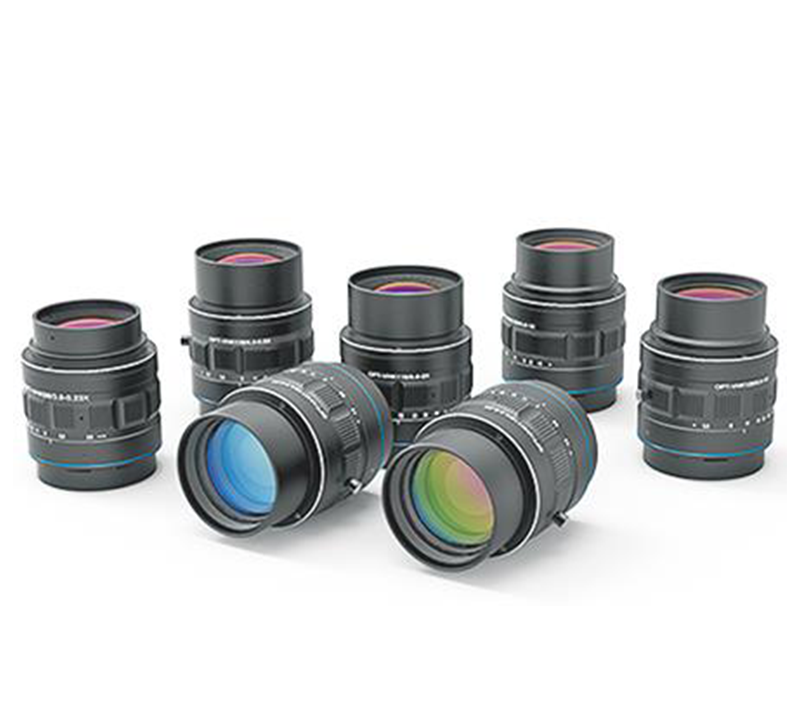

Industrial Hawk Series Line Scan Lenses OPT-VHK116/8.6-2.0X
- High resolution
- Low distortion
- High uniformity
- Wide magnification range
[1]Up to 126 mm image ciecle for OPT-VHK116/8.6-2.0X
[2]Distortion at primary magnification
Features
Size
Applications
| Model | OPT-VHK116/8.6-2.0X |
|---|---|
| Focal Length(mm) | 116 |
| Working Distance(mm) | 100.2 | 97.1 | 94.5 |
| Aperture(F/#) | F8.6-F64 |
| Magnification（X） | 1.9X | 2.0X | 2.1X |
| Image Circle Ø(mm) | 126 |
| Distortion | 0.07% | 0.008% | 0.06% |
| Flange Focal Distance(mm) | 293.3 | 305.0 | 316.1 |
| Object To Image Distance(mm) | 456.4 | 465.0 | 473.5 |
| Mount | V58 |
| Weight(kg) | 0.63 |
| Filter Thread | M58×0.75-6H |
