    Industrial High Resolution C-Mount Cameras OPT-CC1-C120-GG0-01

    • Supports auto or manual adjustment for gain and exposure time,and manual adjustment for LUT and Gamma correction.
    • Adopts GigE interface and max. transmission distance of 100 meters without relay.
    • Compact design with mounting holes on panels for flexible mounting from 4 sides.Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
    • Meet the CE, FCC,RoHS, KC certification.


    Features
    Model OPT-CC1-C120-GG0-01
    Resolution 4096×3072
    Pixel Size(μ㎡) 3.2x3.2
    Sensor Type CMOS Global
    Shutter Global
    Sensor XGS12000
    Frame Rate(FPS) 9.6
    Sensor Format 1"
    Interface GigE PoE
    Lens Mount C
    Exposure Time UltraShort exposure mode:52 μs to 161 μs; Standard exposure mode:162 μs to 10 sec
    Image Format Mono 8/10/12, Bayer GR 8/10/10p/12/12p YUV 422 Packed, YUV422_YUYV_Packed, RGB 8
    Gain(dB) 0 dB to 18 dB
    Dynamic Range(dB) 66.4 dB
    Power Supply 9 VDC to 24 VDC ,supports PoE
    Weight Approx. 100g (0.2 lb.)
    Power Consumption(W) Typ. 3.5 W@12 VDC
    Temperature Storage temperature:-30℃~ + 70℃; Operation temperature: 0℃~+50℃
    GPIO 6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)

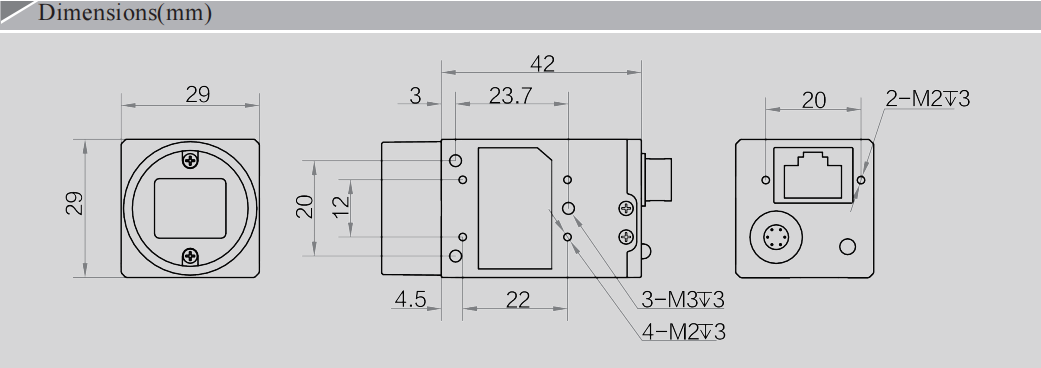

    Dimensions 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
    Mono/Color C

    size-industrial-high-resolution-c-mount-cameras-opt-cc1-c120-gg0-01
