    Industrial High Resolution C-Mount Cameras OPT-CC1-C120-GR1-03

    • Adopts low power consumption design with stable performance.
    • Supports auto and manual adjustment of gain, exposure time, etc.
    • Supports hardware trigger, software trigger, free run, etc.
    • Adopts GigE interface and max. transmission distance of 100 meters without relay.
    • Compatible with GigE Vision V2.0 Protocol, GenlCamStandard, and third-party software based on the protocol and standard.


    Features
    Model OPT-CC1-C120-GR1-03
    Resolution 4024x3036
    Pixel Size(μ㎡) 1.85 x 1.85
    Sensor Type CMOS Rolling
    Shutter Rolling
    Sensor IMX226
    Frame Rate(FPS) 9.7
    Sensor Format 1/1.7 ”
    Interface GigE PoE
    Lens Mount C
    Exposure Time 34 μs ~ 2 sec
    Image Format Bayer RG 8/10/10Packed/12/12Packed
    Gain(dB) 0 dB ~ 20 dB
    Dynamic Range(dB) 70.5 dB
    Power Supply 9 VDC to 24 VDC
    Weight Approx. 100 g (0.2 lb.)
    Power Consumption(W) Typ. 1.82 W@12 VDC
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

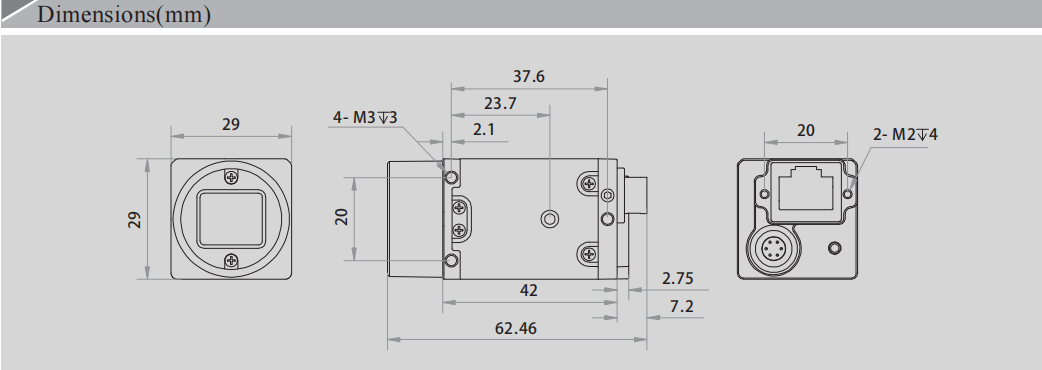

    Dimensions 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
    Mono/Color C
    size-industrial-high-resolution-c-mount-cameras-opt-cc1-c120-gr1-03
