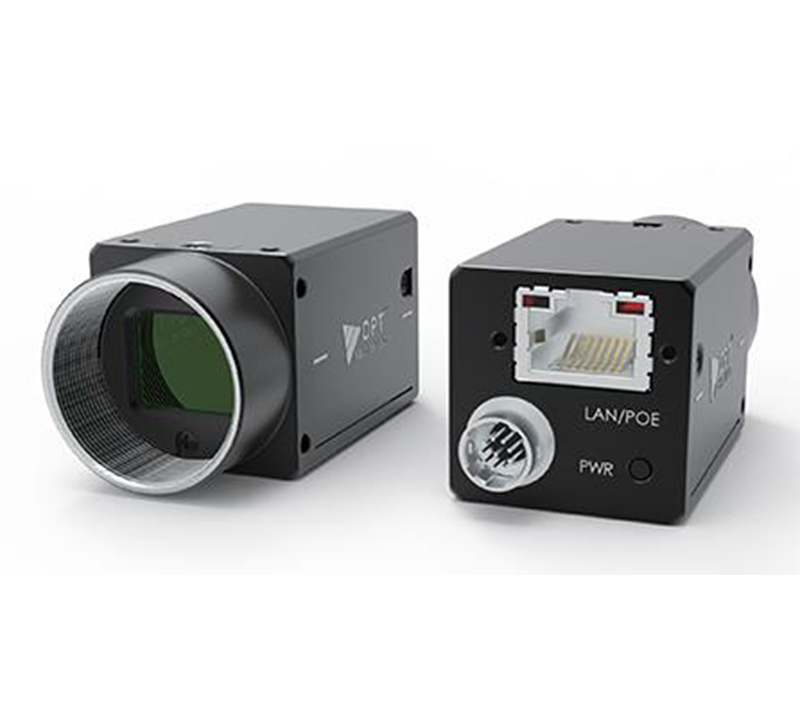

Industrial High Resolution C-Mount Cameras OPT-CC1-M200-GR1-03
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports multiple ISP functions like CCM to provide highquality images.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-M200-GR1-03 |
| Resolution |
5472x3648 |
| Pixel Size(μ㎡) |
2.4x2.4 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX183 |
| Frame Rate(FPS) |
5.9 |
| Sensor Format |
1" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
46 μs ~ 2.5sec |
| Image Format |
Mono 8/10/10p/12/12p |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
65.5 dB |
| Power Supply |
9 VDC to 24 VDC, supports PoE |
| Weight |
Approx. 100 g (0.22 lb.) |
| Power Consumption（W） |
Typ. 2.4 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32°F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

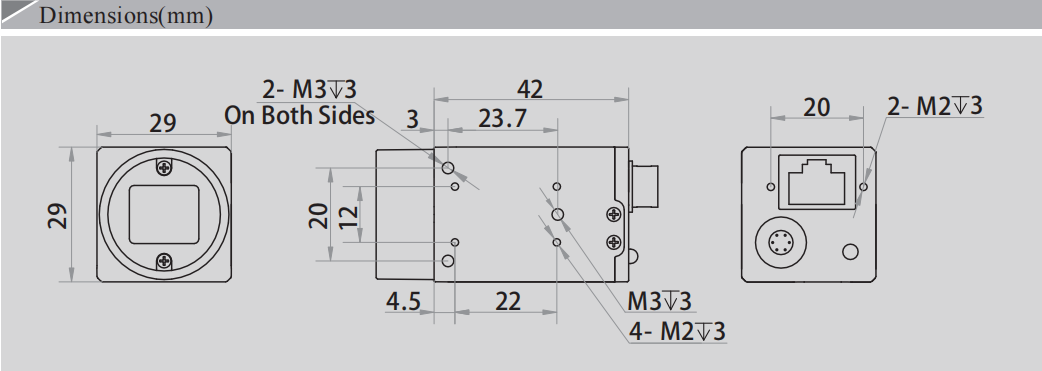

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
M |
