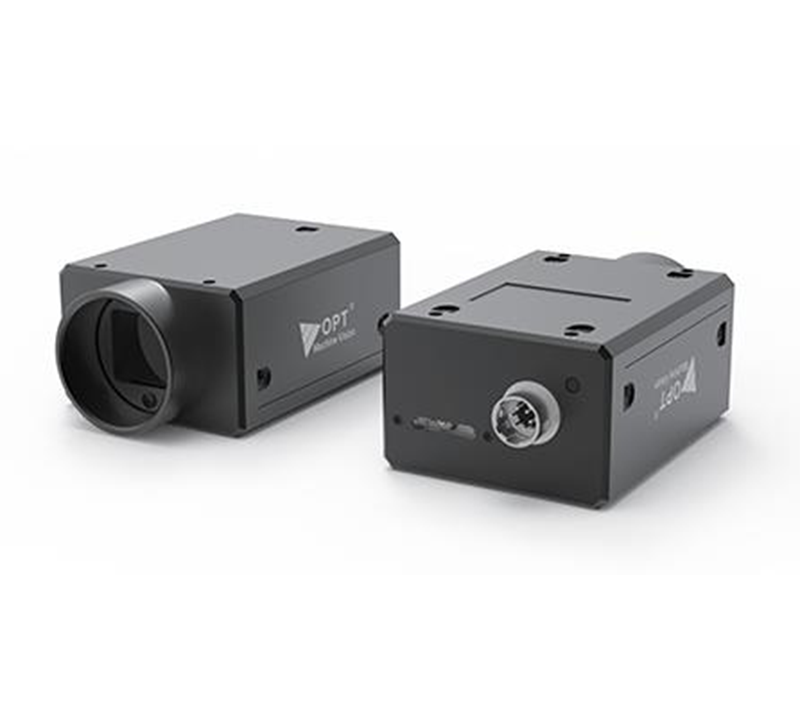

    Industrial High Resolution C-Mount Cameras OPT-CC1-M250-UG3-01

    • Resolution of 5120 × 5120, and pixel size of 2.5 µm × 2.5 µm.
    • Supports lens shading correction, binning, image reverse, etc.
    • Supports hardware trigger, software trigger, and free run.
    • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
    • Meet the CE,FCC,RoHS,KC certification.


    Features
    Model OPT-CC1-M250-UG3-01
    Resolution 5120×5120
    Pixel Size(μ㎡) 2.5x2.5
    Sensor Type CMOS Global
    Shutter Global
    Sensor GMAX0505
    Frame Rate(FPS) 14.3
    Sensor Format 1.1"
    Interface USB3.0
    Lens Mount C
    Exposure Time 12 μs to 10 sec
    Image Format Mono 8/10/10Packed/12/12Packed
    Gain(dB) Supports 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 ×
    Dynamic Range(dB) 65 dB
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Weight Approx. 100g (0.22 lb.)
    Power Consumption(W) Typ. 3.4 W@5 VDC(USB3.0 provides power supply)
    Temperature Storage temperature:-30℃~ + 70℃; Operation temperature: 0℃~+50℃
    GPIO 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto solated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

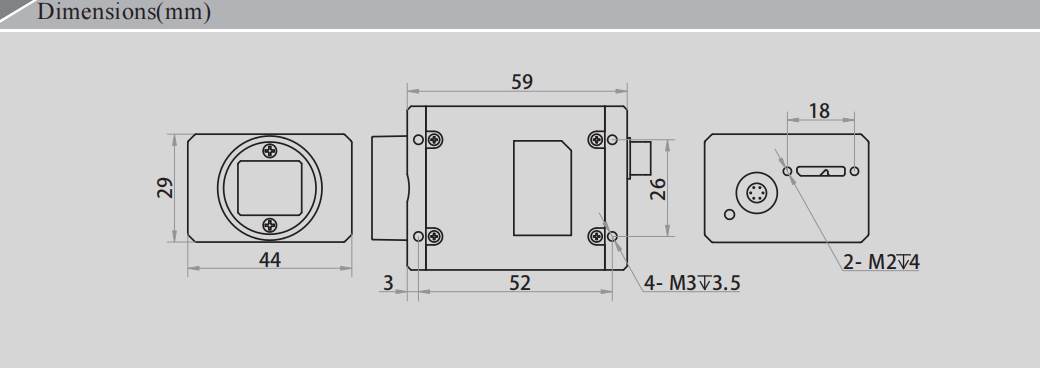

    Dimensions 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
    Mono/Color M
    20220705024040_3174
