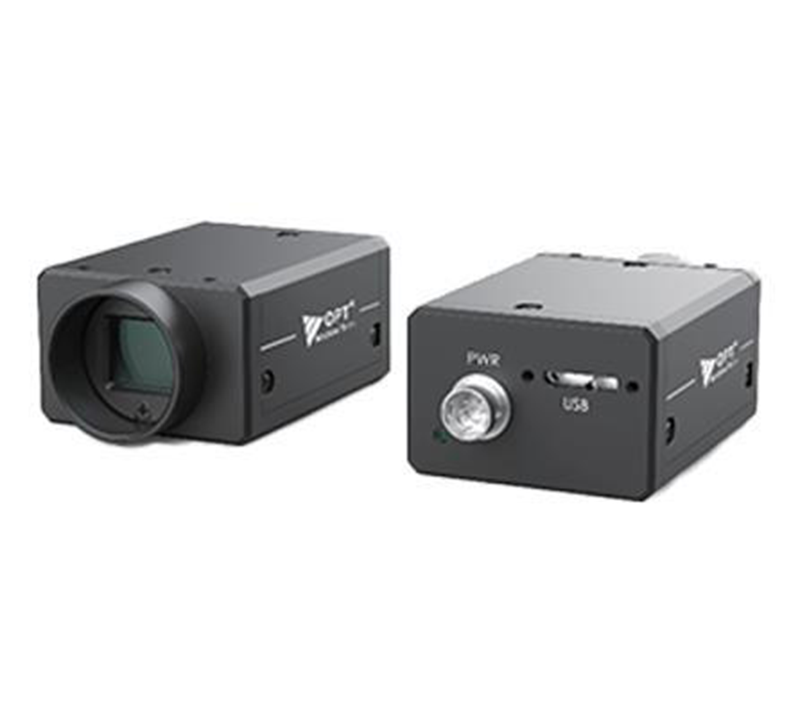

Industrial High Resolution C-Mount Cameras OPT-CC1200-UM-0402
- 5Gbps bandwidth USB3.0 interface.
- Support multiple image data formats.
- Conform to CE FCC RoHS certififications.
- Software trigger/Hardware trigger/Free run mode.
- Conforms to USB3 vision protocol and GenlCam standard.
Features
| Model |
OPT-CC1200-UM-0402 |
| Resolution |
4096×3000 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX253 |
| Frame Rate(FPS) |
30 |
| Sensor Format |
1.1" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
26μs~1s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
70dB |
| Power Supply |
Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V |
| Weight |
91g |
| Power Consumption（W） |
≈4.2W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

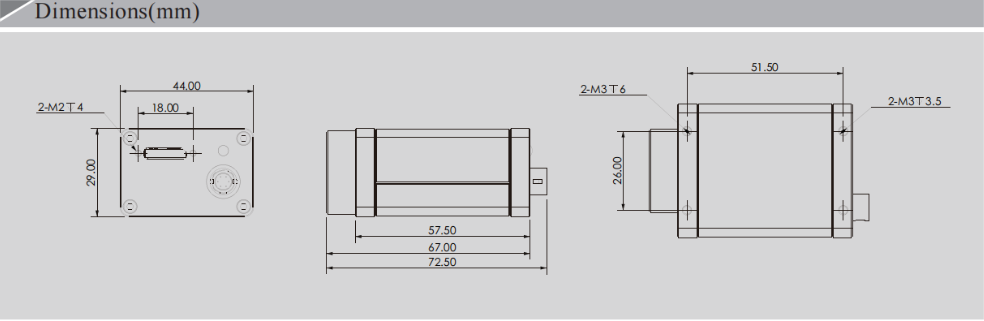

| Dimensions |
29mm×44mm×58mm |
| Conformity |
Compatible with USB3 Vision protocol and GenICam standard; |
| Mono/Color |
C |
