Camera & Optics

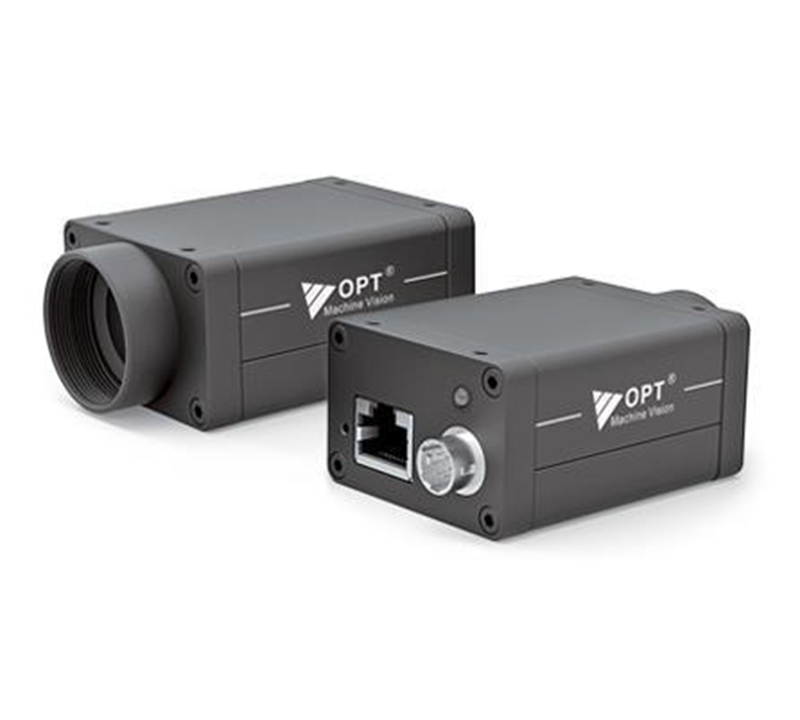

Industrial High Resolution C-Mount Cameras OPT-CC2500-GM-04
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Binning/Mirror,etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard.
- Support PoE power supply, DC 9V~24V wide voltage power supply.
Features
| Model |
OPT-CC2500-GM-04 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
2.5x2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
Gpixel |
| Frame Rate(FPS) |
4 |
| Sensor Format |
1.1" |
| Interface |
GigE PoE |
| Lens Mount |
C-Mount |
| Exposure Time |
5μs-1s |
| Image Format |
Mono8,BayerRG8/10/10Packed, BayerGB8/10/10Packed，YUV422Packed100g |
| Gain(dB) |
X1-X32 |
| Dynamic Range(dB) |
>64dB |
| Power Supply |
PoE / DC 9V~24V power supply via Hirose interface |
| Weight |
100g |
| Power Consumption（W） |
12V≈4.0W |
| Temperature |
Storage: - 10℃-+50℃; operating: -10℃-+50℃ |
| GPIO |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |

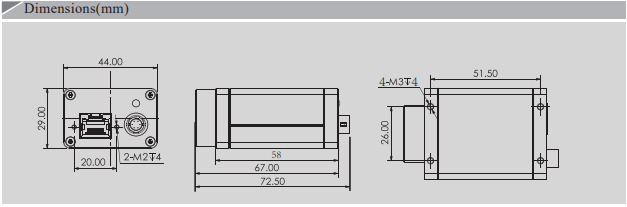

| Dimensions |
29mm×44mm×58mm |
| Conformity |
GigE Vision V2.0 and GenlCam |
| Mono/Color |
C |
