Camera & Optics

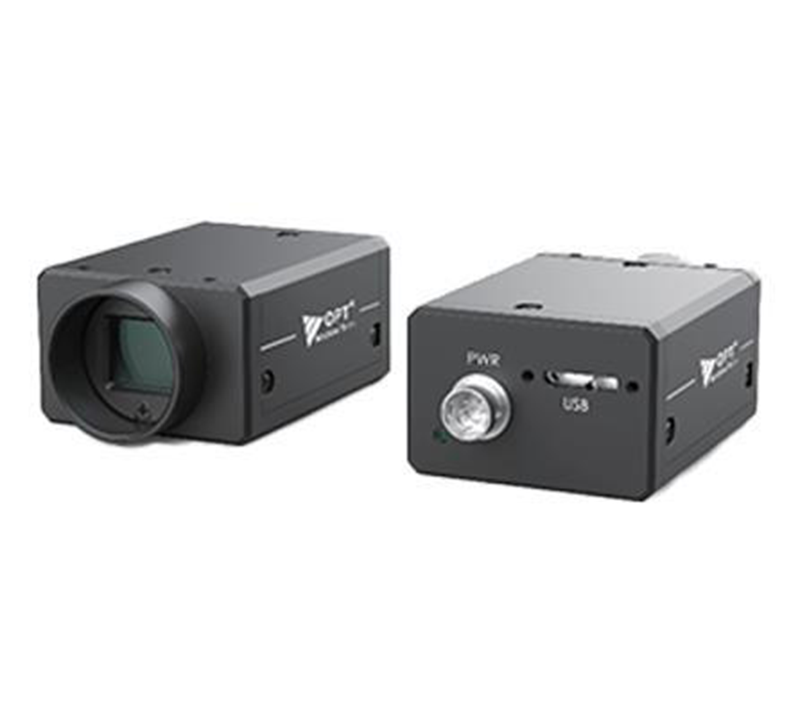

Industrial High Resolution C-Mount Cameras OPT-CC2500-UM-04
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface.
- Compact size of 29mmx44mmx58mm.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Color cameras support interpolation, white balance,color conversion matrix, chroma, saturation, etc.
Features
| Model |
OPT-CC2500-UM-04 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
2.5x2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
Gpixel |
| Frame Rate(FPS) |
14 |
| Sensor Format |
1.1" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
5μs-1s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
＞64dB |
| Power Supply |
power supply via USB interface/ DC 9V~24V power supply via Hirose interface |
| Weight |
100g |
| Power Consumption（W） |
12V≈4.0W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6-core Hirose interface :1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output |

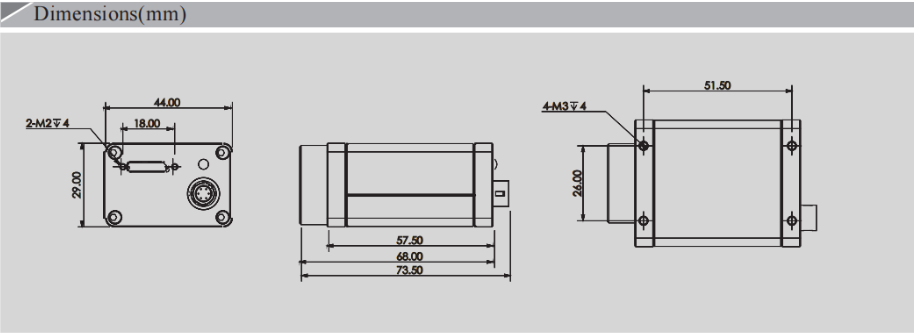

| Dimensions |
29mm×44mm×58mm |
| Conformity |
Compatible with USB3 Vision protocol and GenICam standard |
| Mono/Color |
C |
