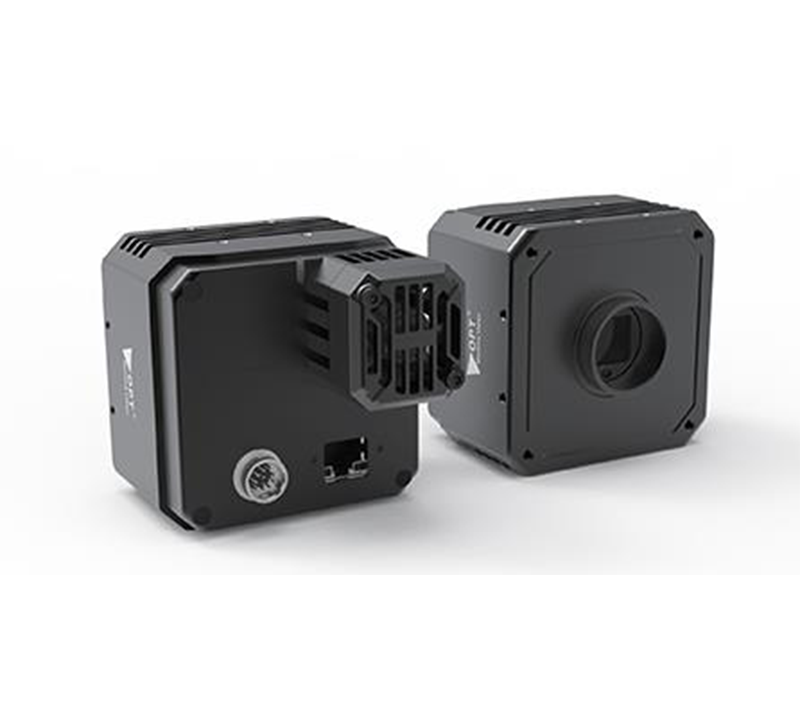

    Industrial High Resolution C-Mount Cameras OPT-CD1-M250-XGG3-02

    • Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
    • Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
    • Supports adjustment for exposure time, gain,Look-Up Table (LUT), Gamma correction, etc.
    • MMounting holes on panels for flexible installation.
    • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
    • Coincidence CE, FCC, RoHS, KC Certification.

    ​​​​​​​
    Features
    Model OPT-CD1-M250-XGG3-02
    Resolution 5120×5120
    Pixel Size(μ㎡) 2.5x2.5
    Sensor Type CMOS Global
    Shutter Global
    Sensor GMAX0505
    Frame Rate(FPS) 41.5
    Sensor Format 1.1"
    Interface 10 GigE
    Lens Mount C-mount, optical back focal length 17.52 mm (0.7")
    Exposure Time 13 μs to 10 sec
    Image Format Mono 8/10/10p/12/12p
    Gain(dB) 2.0x to 5.0x
    Dynamic Range(dB) 63 dB
    Power Supply 9 VDC to 24 VDC
    Weight C-mount camera: approx. 590g (1.3 lb.)
    Power Consumption(W) Typ. 9.7 W@12 VDC
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
    Dimensions 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
    Mono/Color M
