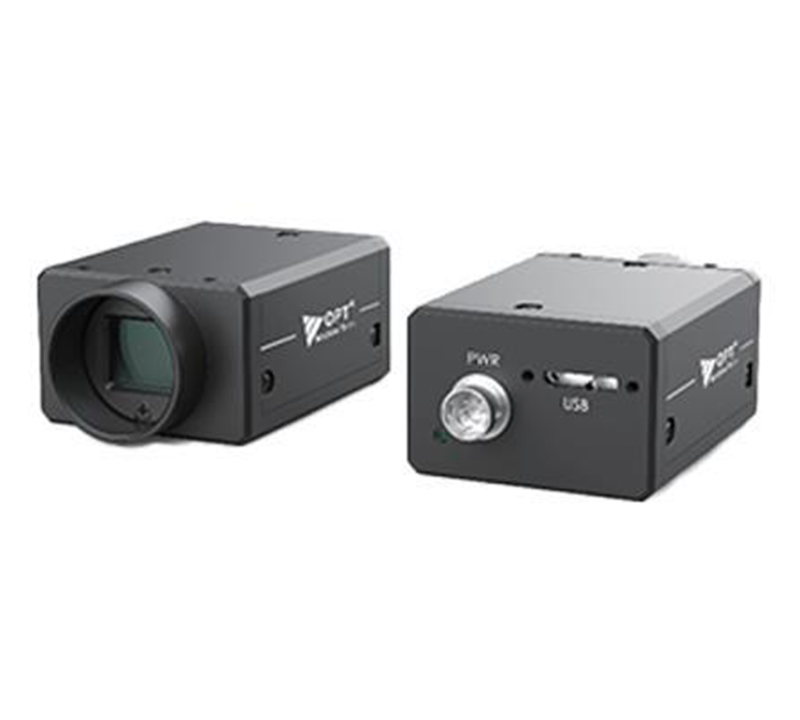

Industrial High Resolution C-Mount Cameras OPT-CM1200-UM-16
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification
Features
| Model | OPT-CM1200-UM-16 |
|---|---|
| Resolution | 4096×3000 |
| Pixel Size(μ㎡) | 3.45x3.45 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | IMX304 |
| Frame Rate(FPS) | 23.1 |
| Sensor Format | 1.1" |
| Interface | USB3.0 |
| Lens Mount | C |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Image Format | Mono 8/10/10p/12/12p |
| Gain(dB) | 0 dB ~ 20 dB |
| Dynamic Range(dB) | 72.2 dB |
| Power Supply | 12 VDC, supports USB3.0 power supply |
| Weight | Approx. 100 g (0.2 lb.) |
| Power Consumption（W） | Typ. 3.5 W@5 VDC (USB3.0 provides power supply) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Dimensions | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Mono/Color | M |
