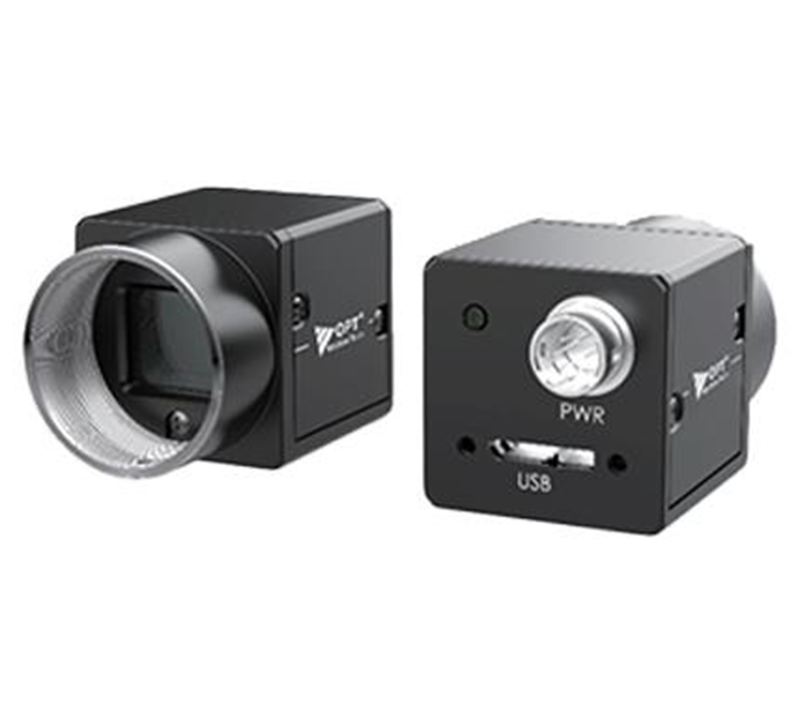

    Industrial High Resolution C-Mount Cameras OPT-CM1200-UM-1601

    • Supports auto or manual adjustment for gain and exposure time, and manual adjustment for LUT and Gamma correction.
    • Compact design with mounting holes on panels for flexible mounting from 4 sides.
    • Supports hardware trigger, software trigger and free run mode.
    • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
    • Conform CE, FCC, RoHS,KC certifications
    Features
    Model OPT-CM1200-UM-1601
    Resolution 4096×3072
    Pixel Size(μ㎡) 3.2x3.2
    Sensor Type CMOS Global
    Shutter Global
    Sensor XGS12000
    Frame Rate(FPS) 28
    Sensor Format 1"
    Interface USB3.0
    Lens Mount C
    Exposure Time UltraShort exposure mode: 52 μs to 161 μs Standard exposure mode: 162 μs to 10 sec
    Image Format Mono 8/10/10Packed/12/12Packed
    Gain(dB) 0 dB ~ 18 dB
    Dynamic Range(dB) 68 dB
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Weight Approx. 80 g (0.2 lb.)
    Power Consumption(W) Typ. 3.5 W@5 VDC (USB3.0 provides power supply)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    GPIO 6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)

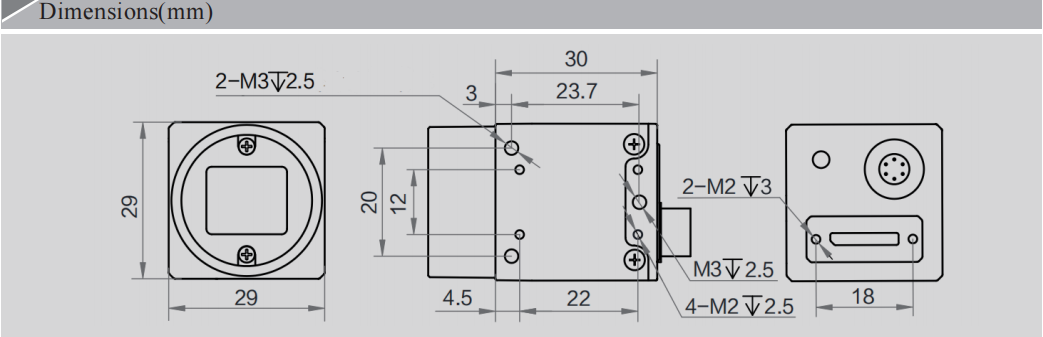

    Dimensions 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
    Mono/Color M

    size-industrial-high-resolution-c-mount-cameras-opt-cm1200-um-1601
