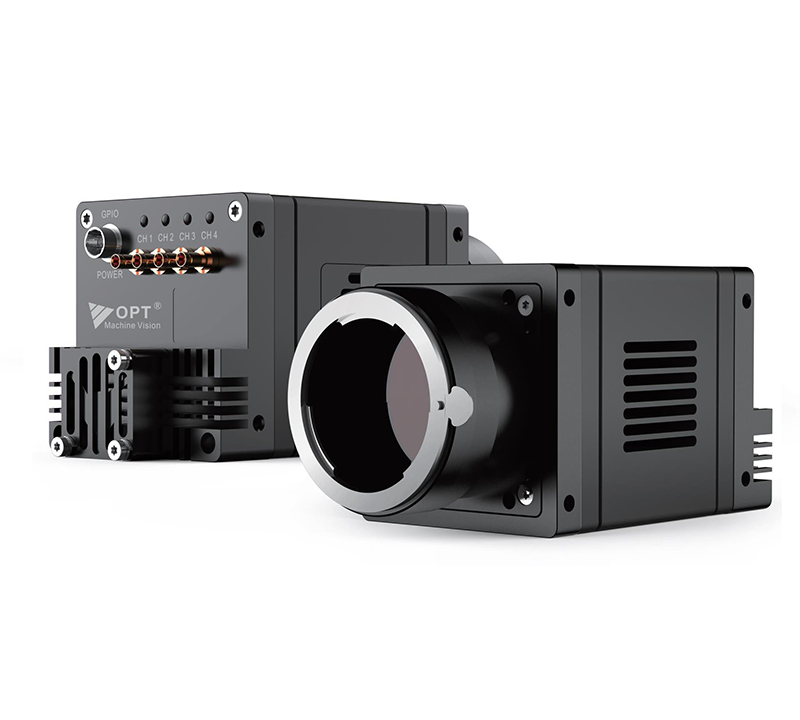

    Industrial High Resolution Large Format Cameras OPT-CC1200-XM-0401

    • CoaxPress uses CXP—6,the theoretcal bandwith 4*6.25Gbps.
    • Support multiple trigger modes such as external trigger/free run.
    • Support FFC.
    • Support a vartety of image adta format output,ROI and other functions.
    • Compatible with the CoaxPress protocol and GenlCam standards.
    • Support for PoCXP power supply and 24V external power supply.
    • Compliance with Ce,FCC and RoHS certification.


    Features
    Model OPT-CC1200-XM-0401
    Resolution 4096×3072
    Pixel Size(μ㎡) 5.5x5.5
    Sensor Type CMOS Global
    Shutter Global
    Sensor CMV12000
    Frame Rate(FPS) 188
    Sensor Format 22.5mm×16.9mm
    Interface CXP-6
    Lens Mount M58X0.75
    Exposure Time 50μs~5s
    Image Format BayerGR8/BayerGR10/BayerGR12/BayerRG8/BayerRG10BayerGR8/BayerGR10/BayerGR12/BayerRG8/BayerRG10/BayerBG12
    Gain(dB) 1~100
    Dynamic Range(dB) 60dB
    Power Supply Power supply via the 6-core Hirose interface DC,voltage DC 24V
    Weight 720g
    Power Consumption(W) 24V≈15W
    Temperature Storage temperature:-30℃~ + 80℃; Operation temperature: 0℃~+50℃
    GPIO 6-core Hirose interface;3-rode can configure the input and output interface

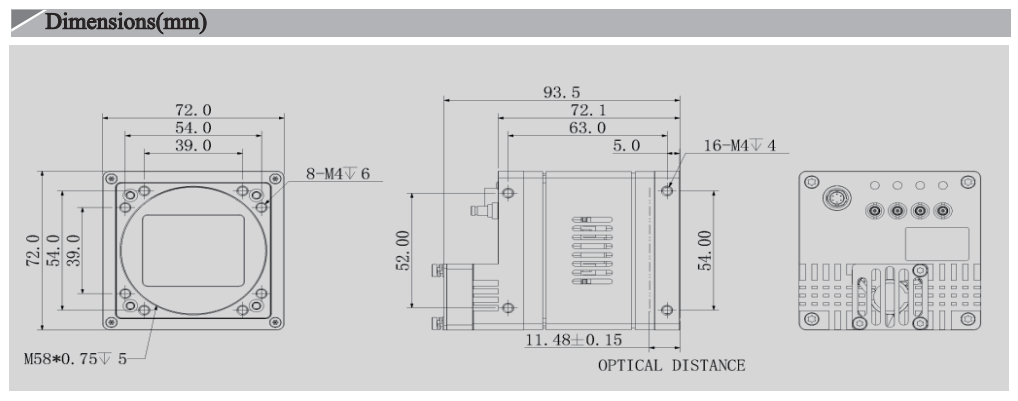

    Dimensions 72mm×72mm×72mm
    Conformity Compatible with the CoaxPress protocol and GenlCam standands
    Mono/Color C

    size-industrial-high-resolution-large-format-cameras-opt-cc1200-xm-0401
