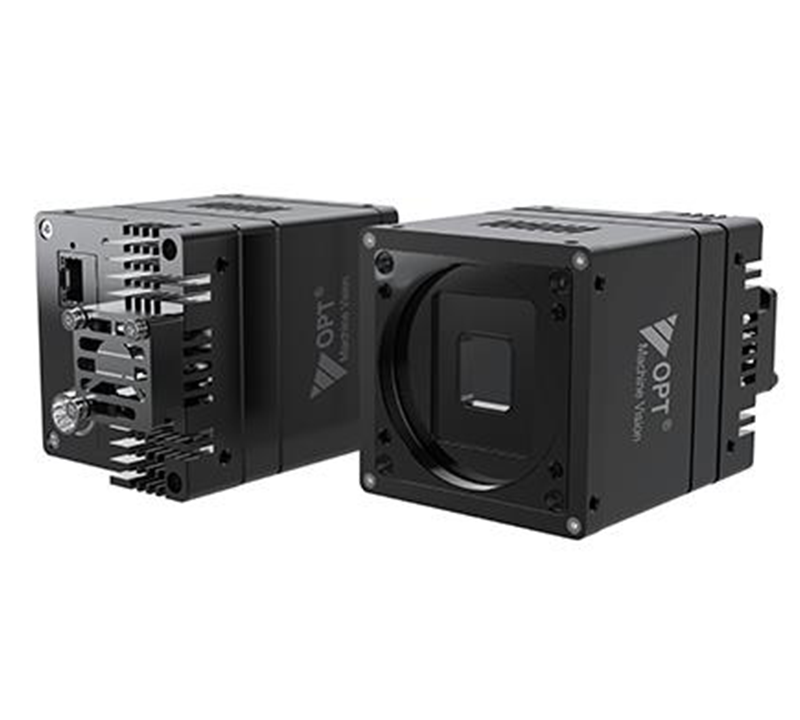

Industrial High Resolution Large Format Cameras OPT-CC2500-XGM-04
- 10GigE interface provides 10G bps bandwidth
.
- 1GB on-board frame buffer supports image data retransmission under burst mode
.
- Supports software trigger,hardware trigger and free run modes.
- Supports customized ROI,horizontal mirroring and vertical mirroring functions.
- Supports auto-exposure adjustment, auto-gain adjustment, auto-black
level correction,gamma correction,LUT and other ISP functions.
- Supports auto-contrast adjustment on mono camera; Supports auto white-balance adjustment on color camera.
- Supports DC 24V wide-range power supply.
- Coincidence CE,FCC,RoHS,KC Certification.
Features
| Model |
OPT-CC2500-XGM-04 |
| Resolution |
5120x5120 |
| Pixel Size(μ㎡) |
4.5x4.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
PYTHON 25K |
| Frame Rate(FPS) |
43 |
| Sensor Format |
23.0mmx23.0mm |
| Interface |
10 GigE |
| Lens Mount |
M58(FBL 12.3) |
| Exposure Time |
35us-15s |
| Image Format |
BayerRG8/BayerGB8/BayerRG10/BayerGB10/ BayerRG10Packed/BayerGB10Packed |
| Gain(dB) |
x1~x32 |
| Dynamic Range(dB) |
58dB |
| Power Supply |
DC power supply by Hirose connector , with voltage range from 24V |
| Weight |
583g |
| Power Consumption（W） |
24V≈21.6W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~ + 50℃ |
| GPIO |
12-pin Hirose connector includes external power supply, 3-opto isolated inputs and 3-opto isolated outputs |

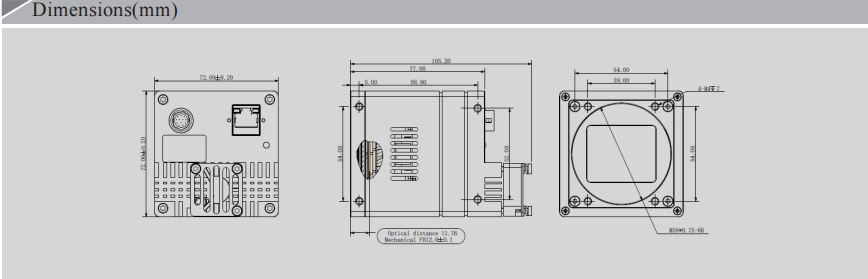

| Dimensions |
72mmx72mmx78mm ( not including lens mount and rear case connector) |
| Mono/Color |
C |
