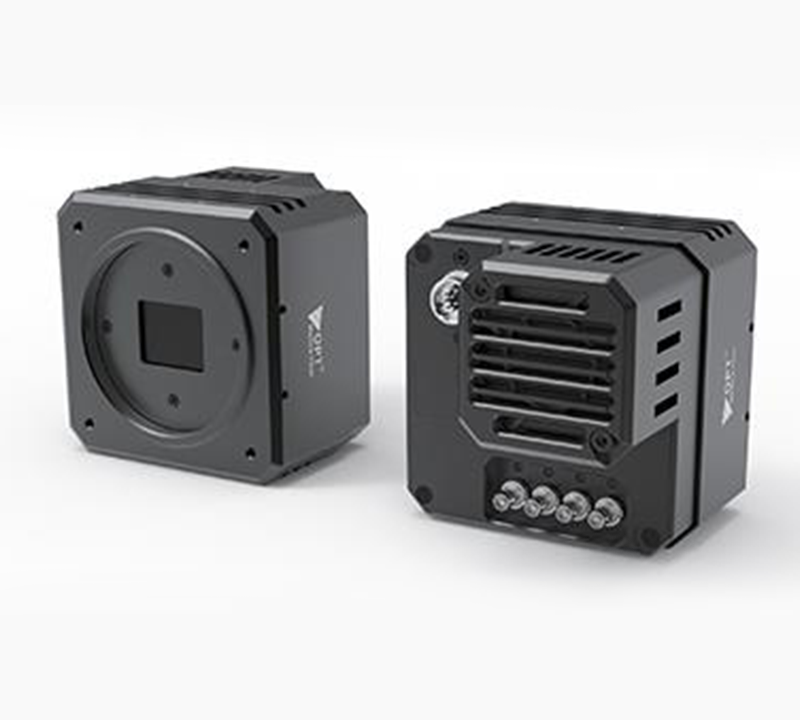

Industrial High Resolution Large Format Cameras OPT-CC2500-XM-04
- CoaxPress applies CXP-12, maximum bandwidth is 4*12.5Gbps.
- Support software trigger/external trigger/free run mode.
- Support FFC, mulitple image format, ROI functon etc.
- Conforms to CoaXPress protocol and GenICam standard.
- Support PoCXP and DC 24V power supply.
- Conforms to CE,FCC and RoHS certfactions.
Features
| Model |
OPT-CC2500-XM-04 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
2.5x2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX0505 |
| Frame Rate(FPS) |
150 |
| Sensor Format |
1.1" |
| Interface |
CXP-12 |
| Lens Mount |
M58*0.75 |
| Exposure Time |
15μs～5s |
| Image Format |
BayerGR8/10/12,BayerRG8/10/12,BayerGB8/10/12 BayerBG8/10/12 |
| Gain(dB) |
1~100 |
| Dynamic Range(dB) |
63dB |
| Power Supply |
DC 24V power supply over 12 Hirose connector |
| Weight |
890g |
| Power Consumption（W） |
24V≈19.4W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
3 configurable input/output without opto isolation; 1 RS232 serial portt |

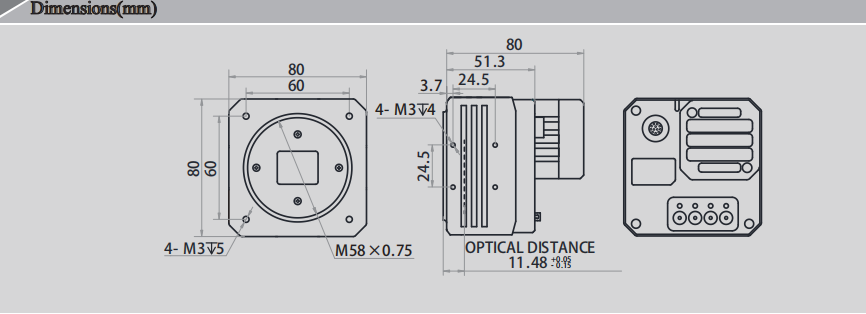

| Dimensions |
80mm×80mm×72mm |
| Conformity |
Compatible with the CoaxPress protocol and GenlCam standands |
| Mono/Color |
C |
