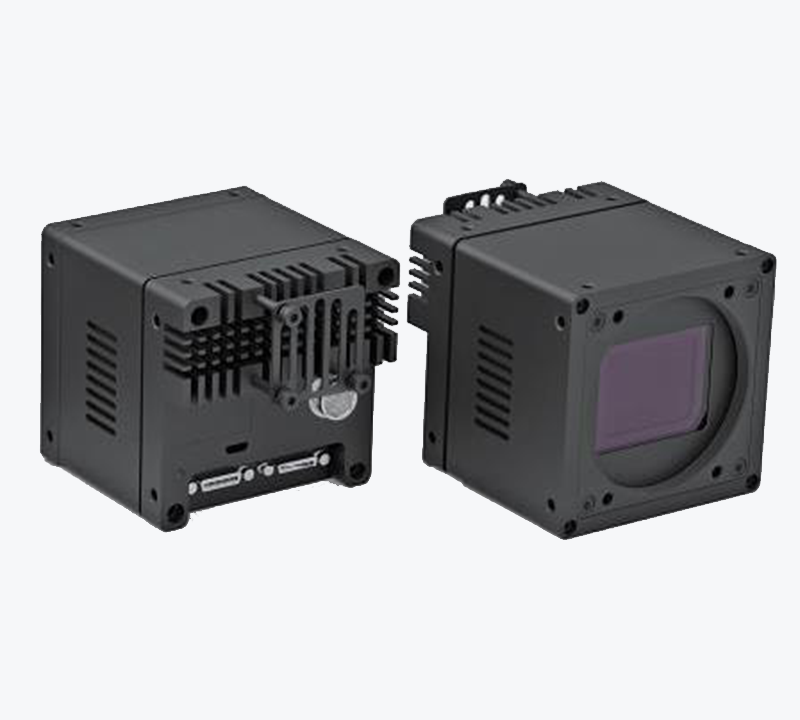

Industrial High Resolution Large Format Cameras OPT-CC3000-LM-04
- Cameralink interface, support Base/Medium/Full/Deca mode.
- Support multiple image data format output, ROI, mirroring, etc.
- Comform to Cameralink V2.0 protocol and GenlCam standard.
- Comform to GenCP V1.1 Standard Communication Protocol.
- Comform to CE, FCC, UL and RoHS certifications.
- Software trigger/Hardware trigger/Free run mode.
Features
| Model |
OPT-CC3000-LM-04 |
| Resolution |
6240×4848 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMAX342 |
| Frame Rate(FPS) |
20 |
| Sensor Format |
24.9mm×16.6mm |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M58(FBL12) |
| Exposure Time |
3μs~10s |
| Image Format |
BayerRG8/10/12,BayerGB8/ 10/12 |
| Gain(dB) |
x1~x32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
PoCL/ DC 24V via Hirose connector |
| Weight |
390g |
| Power Consumption（W） |
24V≈8W |
| Temperature |
Storage：-30℃~+80℃；Operating：0℃~+50℃ |
| GPIO |
12 pin Hirose: 3 Opto-isolated input, 3 Opto-isolated output, 1 RS232 serial port |

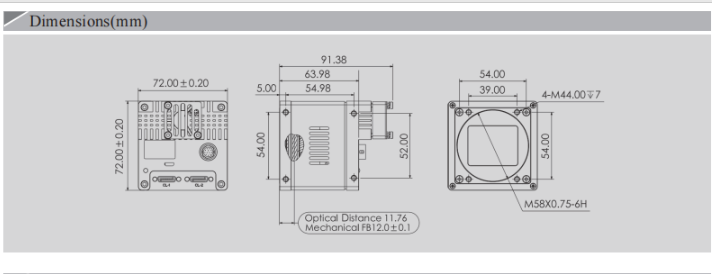

| Dimensions |
72mm×72mm×64mm |
| Conformity |
Camera Link （SDR）and GenlCam |
| Mono/Color |
C |
