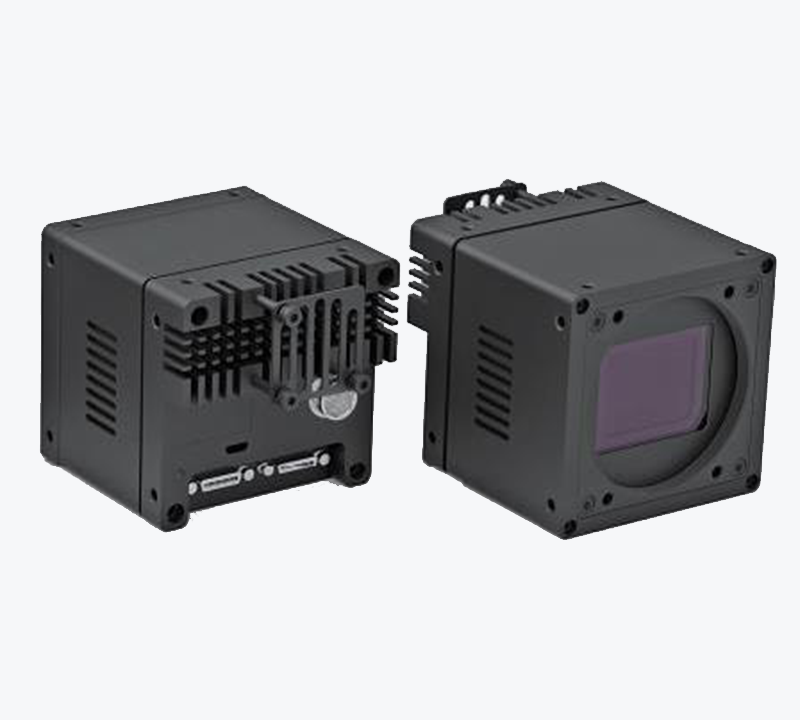

Industrial High Resolution Large Format Cameras OPT-CC3100-GM-04
- Sony CMOS sensor,Global Shutter,APS-C sensor size.
- Support FFC function and enabled excellent image quality.
- Own patented sensor flatness adjustment solution.
- Excellent thermal control design to maintain stable temperature.
- GigE interface provides 1Gbps bandwidth, with max 100m transmission.
- Conforms to GigE Vision V2.0 protocol and GenICam standard.
- DC 24V wide range power supply.
- Conforms to CE,FCC and RoHS certifications.
Features
| Model |
OPT-CC3100-GM-04 |
| Resolution |
6464×4852 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX342 |
| Frame Rate(FPS) |
3.6 |
| Sensor Format |
22.3mm×16.6mm |
| Interface |
GigE |
| Lens Mount |
M58×0.75 |
| Exposure Time |
3μs~15s |
| Image Format |
Mono8/BayerRG8/BayerGB8/ BayerRG10/BayerGB10/BayerRG12/ BayerGB12/BayerRG10Packed/ BayerGB10Packed/BayerRG12 Packed/BayerGB12Packed/YUV422 Packed |
| Gain(dB) |
x1~x32 |
| Dynamic Range(dB) |
73dB |
| Power Supply |
Power via 12-core Hirose interface DC,voltage range from 24V |
| Weight |
487g |
| Power Consumption（W） |
24V≈7.86W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12 pin Hirose: 3 Opto-isolated input, 3 Opto-isolated output, 1 RS232 serial port |

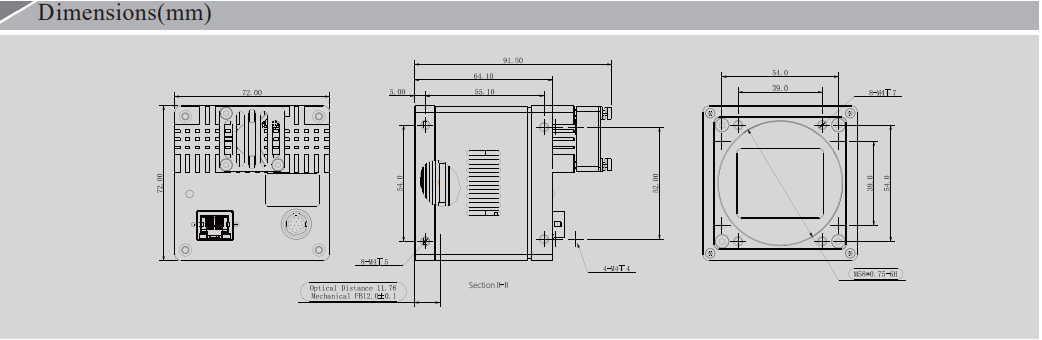

| Dimensions |
72mm×72mm×46mm |
| Conformity |
GigE Vision V2.0 and GenlCam |
| Mono/Color |
C |
