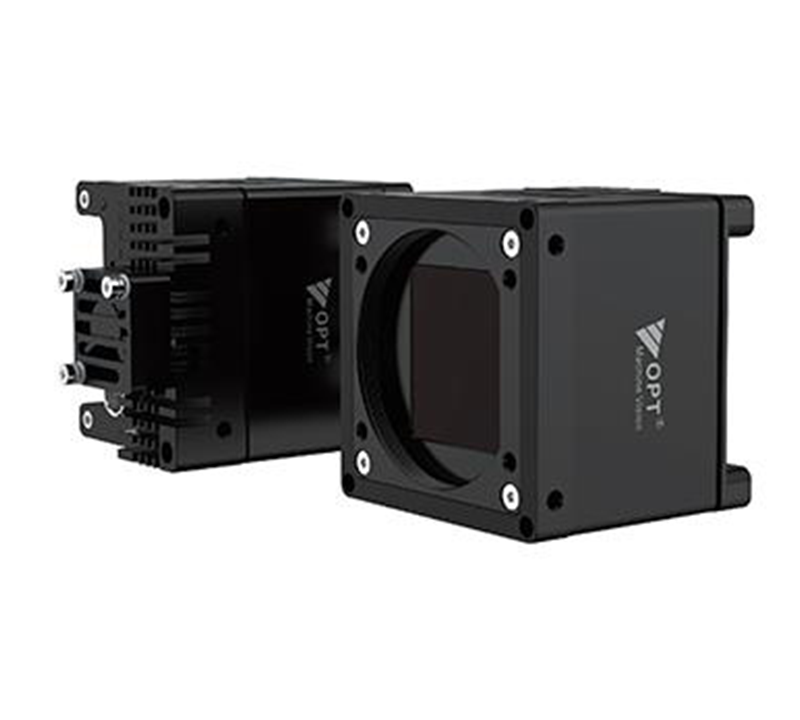

Industrial High Resolution Large Format Cameras OPT-CC6500-GM-04
- SupportFC function and enabled excellet imagequlity.
- Excllent thermal control design to maintain stable temperature.
- GigE interface provides IGbps bandwidth,withmax 100m transmission.
- Conforms to GigE Vision V2.0 protocol and GenICam standard.
- DC 12-26V wide range power supply.
- Conforms to CE,FCC,UL and RoHS certifications.
Features
| Model |
OPT-CC6500-GM-04 |
| Resolution |
9344×7000 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX3265 |
| Frame Rate(FPS) |
1.7 |
| Sensor Format |
37.4mm |
| Interface |
GigE |
| Lens Mount |
M58*0.75 |
| Exposure Time |
16 μS ~ 15 S |
| Image Format |
Mono8,BayerRG8/10/10P/12/12P,BayerGB8/10/10P/12/12P, YUV422_8,YUV422_Packed |
| Gain(dB) |
xl~x32 |
| Dynamic Range(dB) |
66 dB |
| Power Supply |
Power via 12-core Hirose interface DC,voltagerange from 12-26V |
| Weight |
482g |
| Power Consumption（W） |
24V ≈8.4W |
| Temperature |
Storage temperature:-30℃~+80℃;Operation temperature: 0℃~+50℃ |
| GPIO |
12 pin Hirose:3 Opto-isolated input,3 Opto-isolated output,Route 1 RS232 serial port |

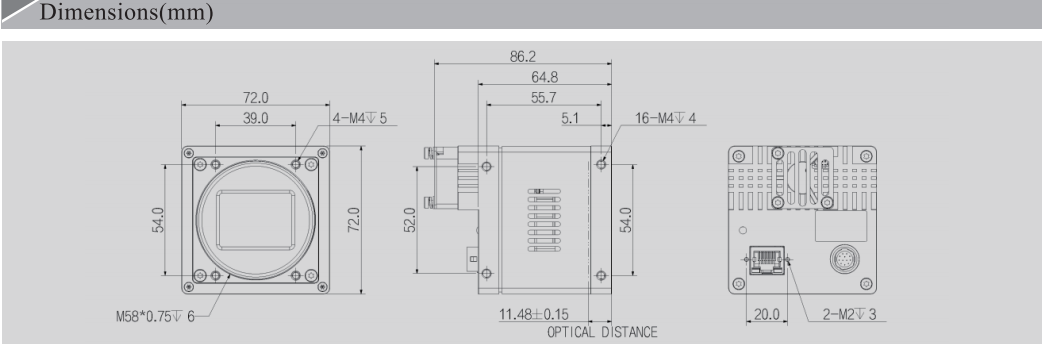

| Dimensions |
72mmx72mmx65mm( not including lens mount and rear case connector) |
| Mono/Color |
C |
