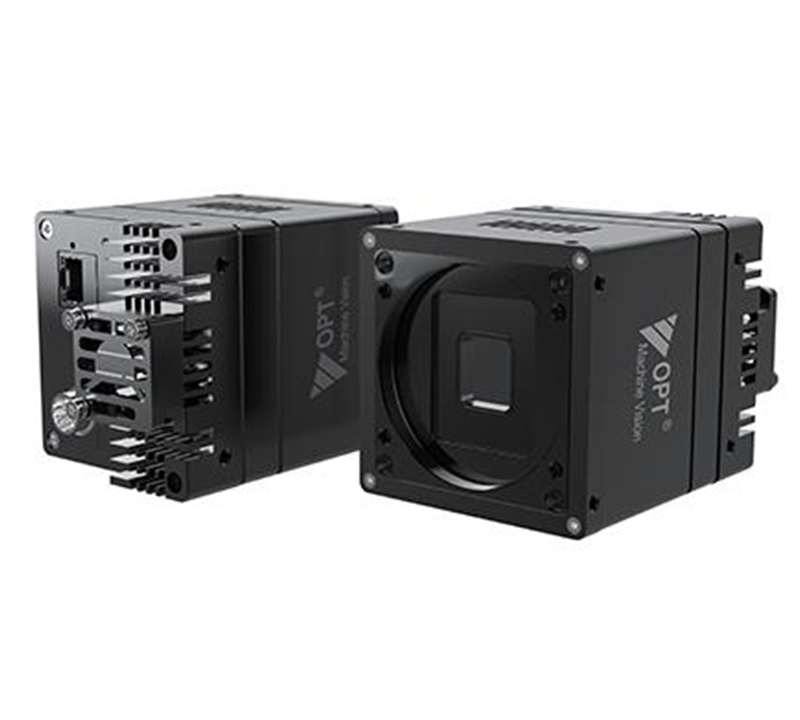

    Industrial High Resolution Large Format Cameras OPT-CC6500-XGM-04

    • 10GigE interface provides 10G bps bandwidth.
    • Support software trigger, hardware trigger and free run modes.
    • Support customized ROI,horizontal morroring and vertical mirroring functions.
    • Supports auto-exposure adjustment, auto-gain adjustment, auto-black level correction,gamma correction,LUT and other ISP functions.
    • Support the fan speed adaptivity function for setting the sensor target temperature.
    • Supports for a 24V voltage.
    Features
    Model OPT-CC6500-XGM-04
    Resolution 9344×7000
    Pixel Size(μ㎡) 3.2x3.2
    Sensor Type CMOS Global
    Shutter Global
    Sensor GMAX3265
    Frame Rate(FPS) 17.4
    Sensor Format 37.4mm
    Interface 10 GigE
    Lens Mount M58*0.75(FBL 12)
    Exposure Time 16μs~15s
    Image Format BayerRG8/GB8
    Gain(dB) X1~X32
    Dynamic Range(dB) 66dB
    Power Supply DC via Hirose interface DC voltage 24V
    Weight 600g
    Power Consumption(W) 24V≈19.4W
    Temperature Storage temperature:-30℃~ + 80℃; Operation temperature: 0℃~+50℃
    GPIO 12-pin Hirose connector includes external power supply, 3-opto isolated inputs and 3-opto isolated outputs

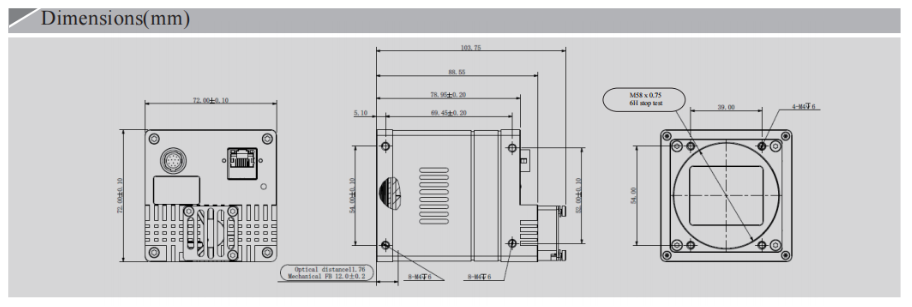

    Dimensions 72mm×72mm×78.95mm
    Mono/Color C

    size-industrial-high-resolution-large-format-cameras-opt-cc6500-xgm-04
