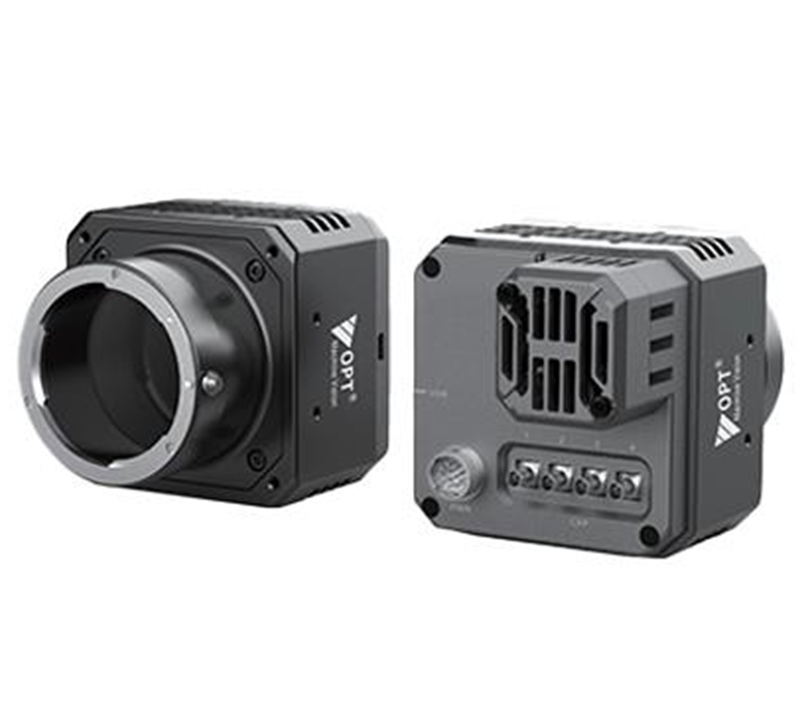

    Industrial High Resolution Large Format Cameras OPT-CC6500-XM-1601

    • Resolution of 9344× 7000, and pixel size of 3.2 µm ×3.2 µ㎡.
    • Adopts global shutter CMOS to provide high dynamicrange, SNR, and high-quality image.
    • Adopts CXP-6 interface to transmit data.
    • Supports Off, Once, and Continuous exposure mode.
    • Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
    • Coincidence CE, FCC, RoHS, KC Certification.


    Features
    Model OPT-CC6500-XM-1601
    Resolution 9344×7000
    Pixel Size(μ㎡) 3.2x3.2
    Sensor Type CMOS Global
    Shutter Global
    Sensor Gpixel GMAX3265
    Frame Rate(FPS) 31.5
    Sensor Format 29.9mm×22.4mm
    Interface CXP-6
    Lens Mount F-mount: optical back focal length: 46.5 mm (1.8")
    Exposure Time 14 μs to 10 sec
    Image Format Bayer BG 8/10/12
    Gain(dB) 1.25x to 6x
    Dynamic Range(dB) 66 dB
    Power Supply 24 VDC
    Weight F-mount with fan: approx. 500g (1.1 lb.)
    Power Consumption(W) Typ. 10.2 W@24 VDC
    Temperature Working temperature: 0 ℃to 50 ℃ (32 °F to 122 °F),Storage temperature: -30 ℃ to 70 ℃(-22 °F to 158 °F)
    GPIO 12-pin Hirose connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.

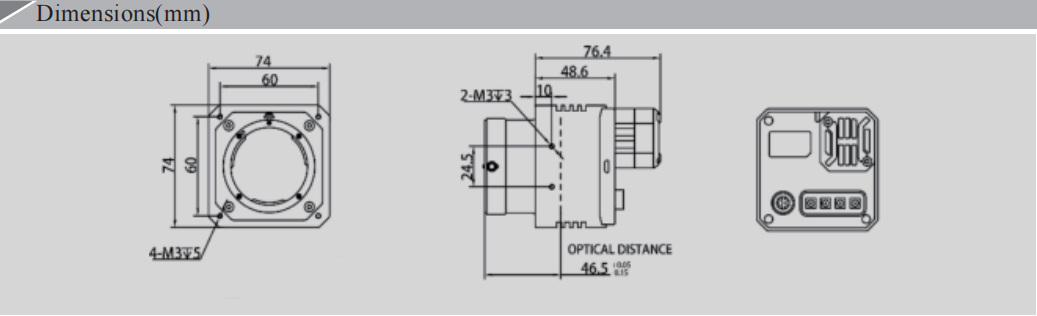

    Dimensions F-mount with fan: 74 mm × 74 mm × 76.4 mm (2.9" × 2.9" × 3.0")
    Mono/Color C

    size-industrial-high-resolution-large-format-cameras-opt-cc6500-xm-1601
