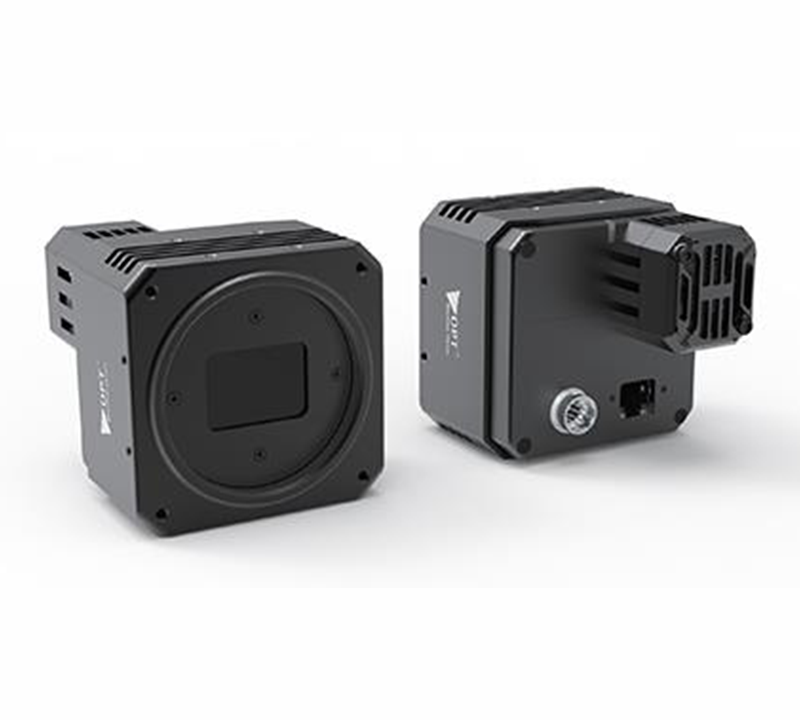

Industrial High Resolution Large Format Cameras OPT-CD1-M310-GG1-02
- Resolution of 6464 × 4852, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Adopts GigE interface providing max. transmission distance of 100 meters without relay.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CD1-M310-GG1-02 |
|---|---|
| Resolution | 6464×4852 |
| Pixel Size(μ㎡) | 3.45x3.45 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | IMX342 |
| Frame Rate(FPS) | 3.9 |
| Sensor Format | 22.3mm×16.7mm |
| Interface | GigE |
| Lens Mount | M58-mount, optical back focal length 11.48 mm (0.5") |
| Exposure Time | UltraShort exposure mode: 3 μs to 33 μs Standard exposure mode: 36 μs to 2 sec |
| Image Format | Mono 8/10/10p/12/12p |
| Gain(dB) | 0 dB to 24 dB |
| Dynamic Range(dB) | 73 dB |
| Power Supply | 9 VDC to 24 VDC |
| Weight | M58-mount with fan: approx. 450g (1.0 lb.) |
| Power Consumption（W） | Typ. 9 W@12 VDC |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Dimensions | M58-mount with fan: 74 mm × 74 mm × 74.3 mm (2.9" × 2.9" × 2.9") |
| Mono/Color | M |
