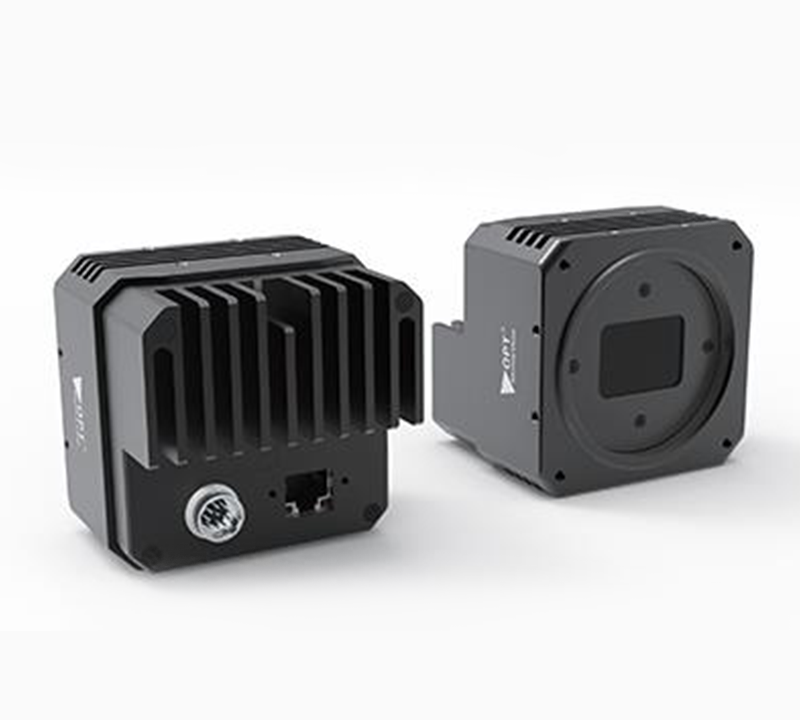

Industrial High Resolution Large Format Cameras OPT-CD1-M310-XGG1-01
- Resolution of 6464 × 4852, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
- Adopts design without fan to ensure stability of high-speed image acquisition.
- Adopts low power consumption design.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CD1-M310-XGG1-01 |
|---|---|
| Resolution | 6464×4852 |
| Pixel Size(μ㎡) | 24.9x16.6 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | IMX342 |
| Frame Rate(FPS) | 17.2 |
| Sensor Format | 24.9mmx16.6mm |
| Interface | 10 GigE |
| Lens Mount | M58*0.75, flange back focal length 11.48 mm (0.5") |
| Exposure Time | UltraShort exposure mode: 3 μs to 33 μs ADC 8-bit mode: 47 μs to 2 sec;ADC 12-bit mode: 36 μs to 2 sec |
| Image Format | Mono 8/10/10Packed/12/12Packed |
| Gain(dB) | 4 μs to 10 sec |
| Dynamic Range(dB) | 73 dB |
| Power Supply | 9 VDC to 24 VDC |
| Weight | Approx. 560g (1.2 lb.) |
| Power Consumption（W） | Typ. 11.5 W@12 VDC |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 12-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Dimensions | 74 mm × 74 mm × 64.4 mm (2.9" × 2.9" × 2.5") |
| Mono/Color | M |
