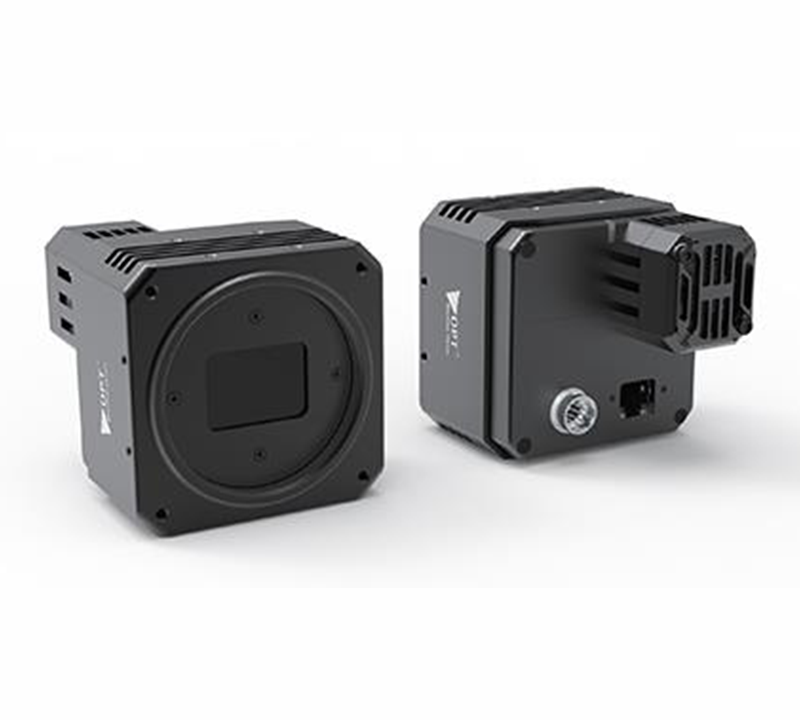

Industrial High Resolution Large Format Cameras OPT-CD1-M650-XGG3-02
- Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
- Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look.
- Up Table (LUT), Gamma correction, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CD1-M650-XGG3-02 |
|---|---|
| Resolution | 9344×7000 |
| Pixel Size(μ㎡) | 3.2x3.2 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | GMAX3265 |
| Frame Rate(FPS) | 15.5 |
| Sensor Format | 29.9mm×22.4mm |
| Interface | 10 GigE |
| Lens Mount | M58-mount, optical back focal length 11.48 mm (0.5") |
| Exposure Time | 15 μs to 10 sec |
| Image Format | Mono 8/10/10p/12/12p |
| Gain(dB) | 1.25X to 6X |
| Dynamic Range(dB) | 66 dB |
| Power Supply | Typ. 11 W@12 VDC |
| Weight | M58-mount with fan: approx. 550g (1.2 lb.) |
| Power Consumption（W） | 9 VDC to 24 VDC |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Dimensions | M58-mount with fan: 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Mono/Color | M |
