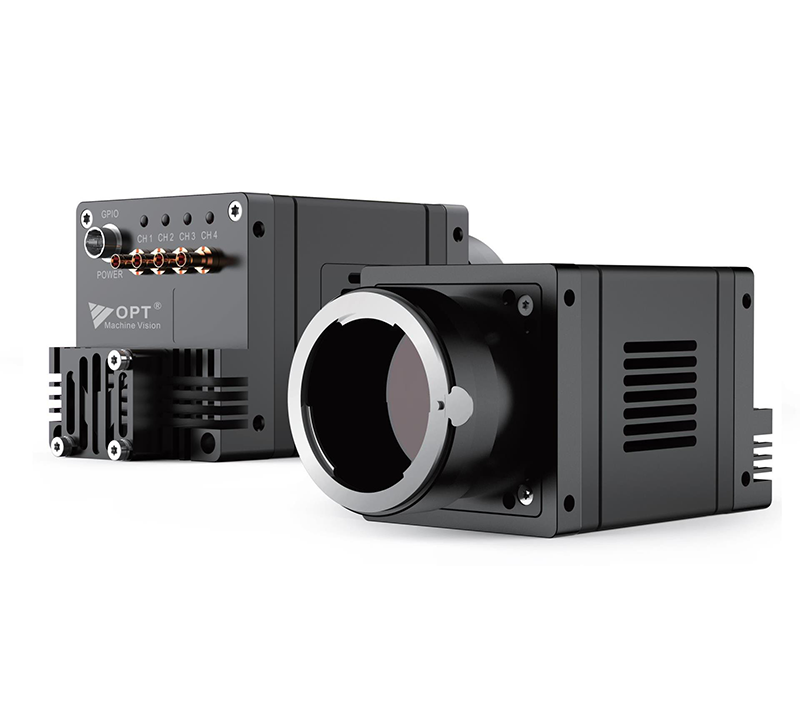

    Industrial High Resolution Large Format Cameras OPT-CM1200-XM-0402

    • CoaxPress uses CXP-6,the theoretical bandwidth 4*6.25Gbps.
    • Support multiple trigger modes such as external trigger / free run.
    • Support for edge enhancetion noise reduction,gamma correction,black level correction,black level correction,LUT and other ISP functions.
    • Support a variety of image data format output,ROI and other functions.
    • Compatible with the CoaxPress protocol and GenlCam standands.
    • Support for PoCXP power supply and DC 24V external power supply.
    • Compliance with CE,FCC and RoHS certification.


    Features
    Model OPT-CM1200-XM-0402
    Resolution 4096×3072
    Pixel Size(μ㎡) 5.5x5.5
    Sensor Type CMOS Global
    Shutter Global
    Sensor CMV12000
    Frame Rate(FPS) 188
    Sensor Format 22.5mm×16.9mm
    Interface CXP-6
    Lens Mount F
    Exposure Time 50μs~5s
    Image Format Mono8/10/12
    Gain(dB) 1~100
    Dynamic Range(dB) 60dB
    Power Supply Supply via 6-core Hirose port DC with supply voltage DC 24V
    Weight 720g
    Power Consumption(W) 24V≈15W
    Temperature Storage temperature:-30℃~ + 80℃; Operation temperature: 0℃~+50℃
    GPIO 6-core Hirose interface:3-road can configure the input and outpnt interface

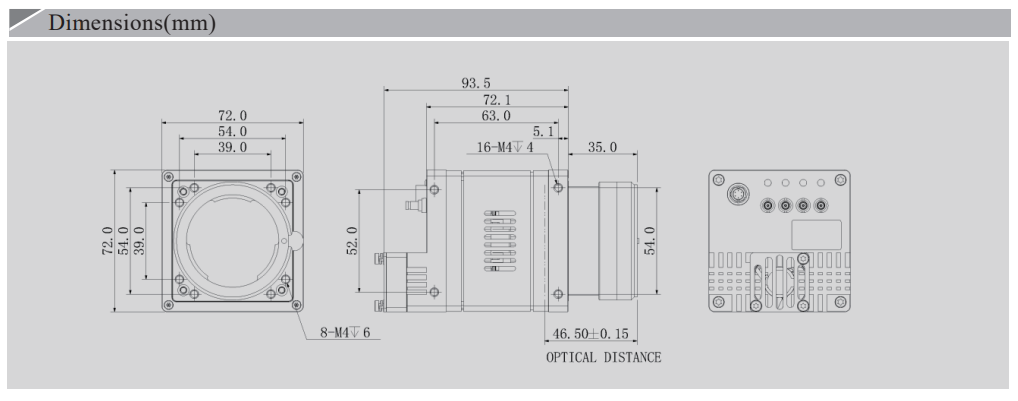

    Dimensions 72mm×72mm×72mm
    Conformity Compatible with the CoaxPress protocol and GenlCam standands
    Mono/Color M
    size-industrial-high-resolution-large-format-cameras-opt-cm1200-xm-0402
