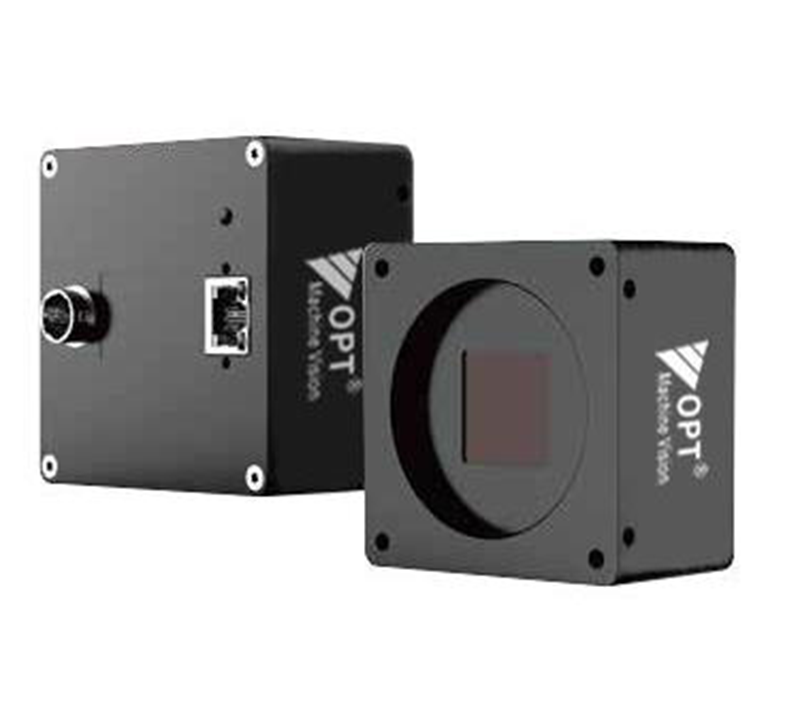

Industrial High Resolution Large Format Cameras OPT-CM1250-GM-04
- Gigabit Ethernet interface,provding 1Gaps,bandwidth,maximum transmission distance of up to 100M.
- Support multiple trigger modes such as software trigger/hardware/trigger/free run.
- Support for sharpness,noise redution,automatic,gamma correction,LUT and other ISP function.
- Color camera supports interpolation,white balance color conversion matrix, chromation,saturation,etc.
- Supports multiple image data format output,ROI,Binning,mirror image,ect.
- Compliance with the Gige Vision V2.0 protocol and GenlCam standards.
- Support for DC 24V wide-voltage power supply.
- Compliance with CE,FCC,RoHS certification.
Features
| Model |
OPT-CM1250-GM-04 |
| Resolution |
4096×3072 |
| Pixel Size(μ㎡) |
4.5x4.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
PYTHON 12K |
| Frame Rate(FPS) |
9 |
| Sensor Format |
4/3" |
| Interface |
GigE |
| Lens Mount |
M58X0.75 |
| Exposure Time |
1μs~1s |
| Image Format |
Mono8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
58dB |
| Power Supply |
Power supply via the 12-core Hirose interface DC,wiht a voltage range from 24V |
| Weight |
430g |
| Power Consumption（W） |
24V≈9W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12-core Hirose Hirose interface ,3 optical coupling isolation input,3 optical coupling isolation output; 1 RS232 serial port |

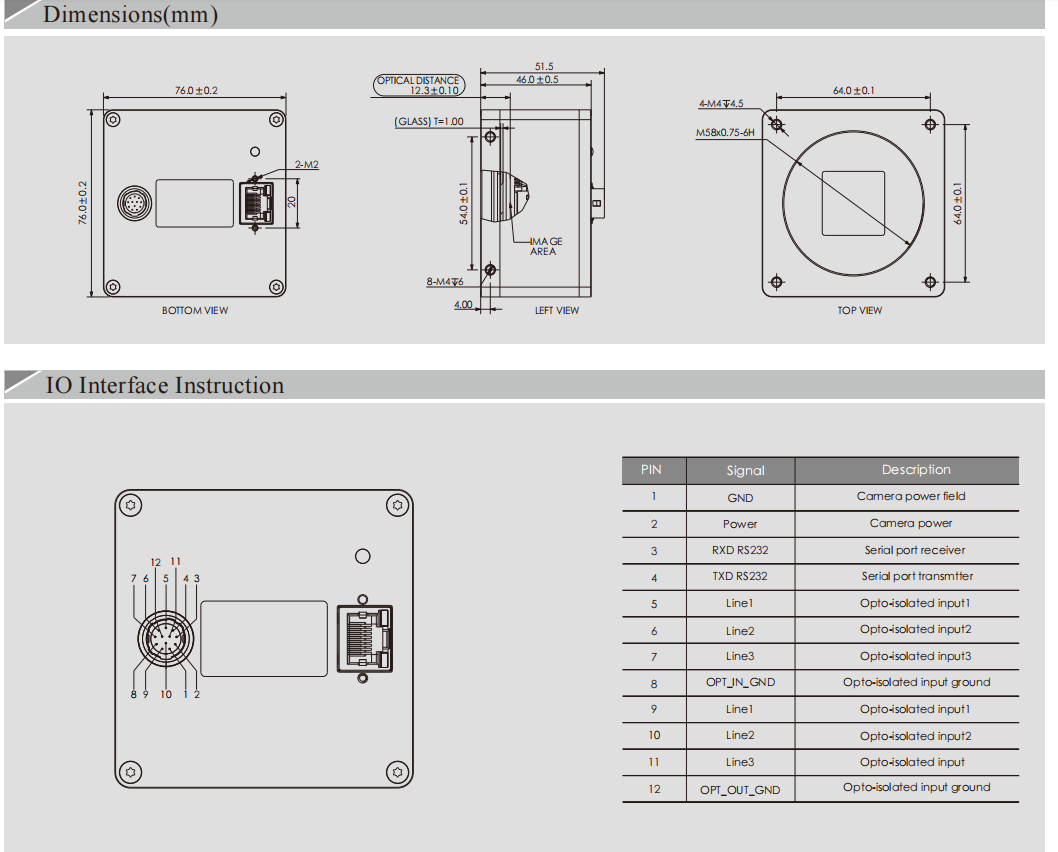

| Dimensions |
72mm×72mm×46mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
M |
