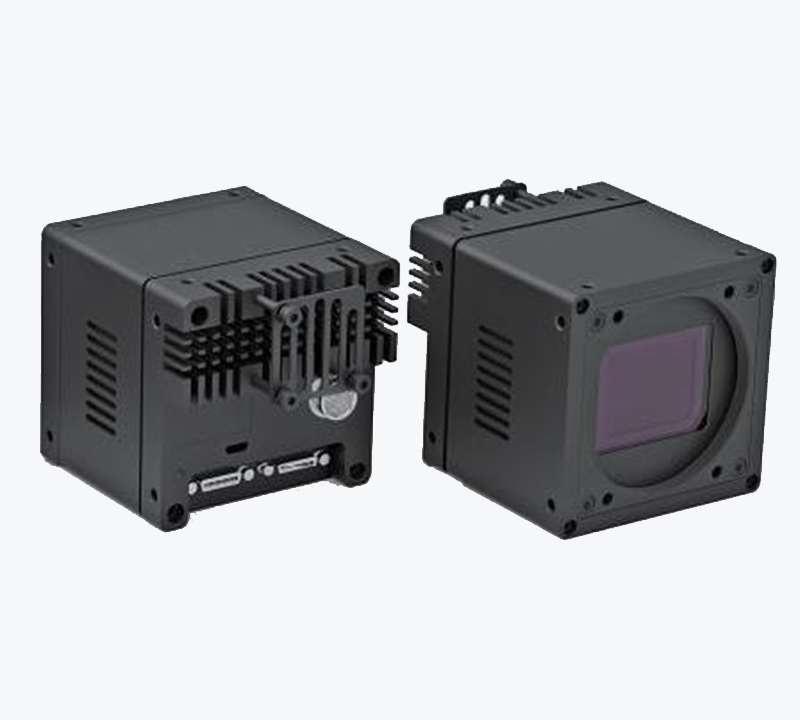

Industrial High Resolution Large Format Cameras OPT-CM15000-LL-04
- Support software trigger/hardware trigger/free run and camera trigger via Camera Link acquisition trigger via Camera Link acquisition card.
- Support for a custom ROI, a horizontal mirror image.
- Support automatic exposure,automatic gain,support contrast, gamma correction, LUT and other ISP functions.
- Compatible wiht the Camera Link protocol and GenlCam standards.
- Support for DC 24V wide-voltage power supply.
Features
| Model |
OPT-CM15000-LL-04 |
| Resolution |
14160×10640 |
| Pixel Size(μ㎡) |
3.76x3.76 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX411 |
| Frame Rate(FPS) |
5.1 |
| Sensor Format |
53.36mm×40.01mm |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72X0.75 |
| Image Format |
Mono8/10/12 |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
90dB |
| Power Supply |
DC 24V power supply via 12-pin Hirose interface |
| Weight |
890g |
| Power Consumption（W） |
24V≈18W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12 pin Hirose: 3 Opto-isolated input, 3 Opto-isolated output, 1 RS232 serial port |

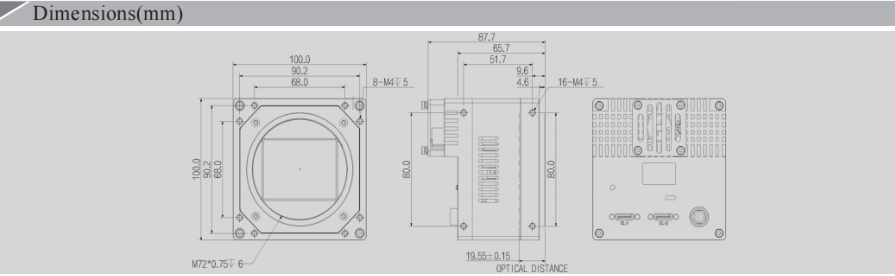

| Dimensions |
100mm×100mm×66mm |
| Conformity |
Compatible with Camera Link （SDR） V2.0 Protocol and GenICam standard; |
| Mono/Color |
M |
