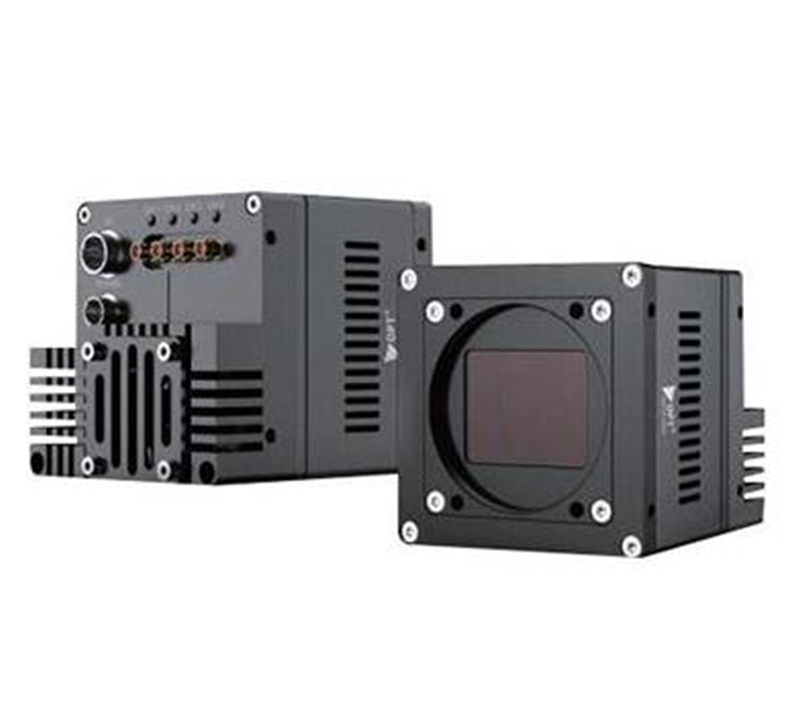

Industrial High Resolution Large Format Cameras OPT-CM15000-XL-04
- CoaxPress uses CXP-6，with a theoretical bandwidth of 4*6.25Gbps.
- ISP functions such as FFC and RGB correction.
- Multiple image data formats are output.
- Compatible with the CoaXPress protocol and GenICam standards.
- Compliance with CE、FCC、and RoHS certification.
- Support for PoCXP power supply and DC 24V external power supply.
Features
| Model | OPT-CM15000-XL-04 |
|---|---|
| Resolution | 14160×10640 |
| Pixel Size(μ㎡) | 3.76x3.76 |
| Sensor Type | CMOS Rolling |
| Shutter | Rolling |
| Sensor | IMX411 |
| Frame Rate(FPS) | 6.2 |
| Sensor Format | 66.7mm |
| Interface | CXP-6 |
| Lens Mount | M72X0.75 |
| Exposure Time | 30μs～5s |
| Image Format | Mono8/Mono10/Mono12 |
| Gain(dB) | x1~x100 |
| Dynamic Range(dB) | 90dB |
| Power Supply | Power supply via 12 Hirose interface DC,voltage of 24V |
| Weight | 890g |
| Power Consumption（W） | 24V≈18W |
| Temperature | Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO | 12 pin Hirose: 3 Opto-isolated input, 3 Opto-isolated output, 1 RS232 serial port |
| Dimensions | 100mm×100mm×66mm |
| Conformity | Compatible with the CoaxPress protocol and GenlCam standands |
| Mono/Color | M |
