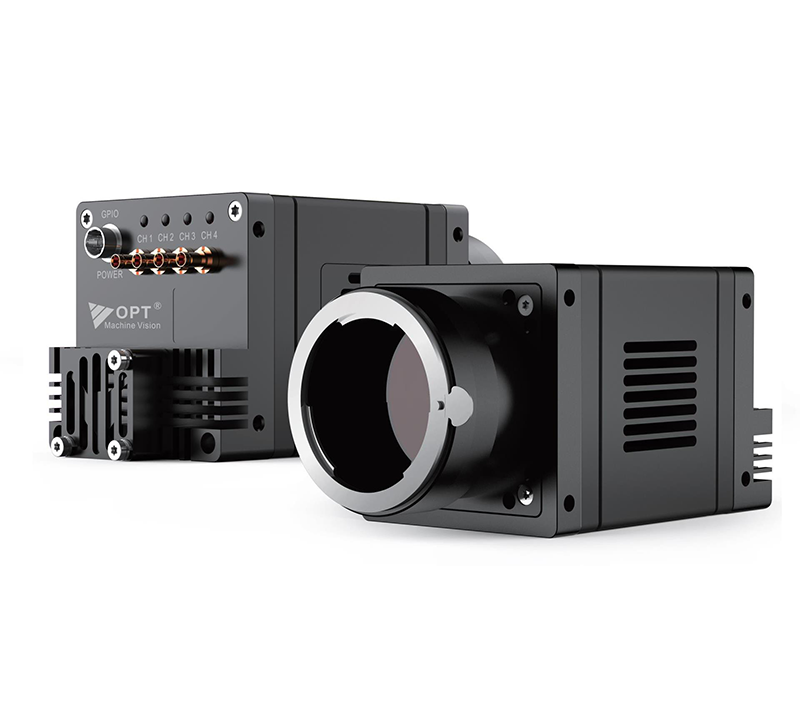

    Industrial High Resolution Large Format Cameras OPT-CM2500-XM-04

    • CoaxPress applies CXP-12, maximum bandwidth is 4*12.5Gbps.
    • Support software trigger/external trigger/free run mode.
    • Support FFC, mulitple image format, ROI functon etc.
    • Conforms to CoaXPress protocol and GenICam standard.
    • Support PoCXP and DC 24V power supply.
    • Conforms to CE,FCC and RoHS certfactions.


    Features
    Model OPT-CM2500-XM-04
    Resolution 5120×5120
    Pixel Size(μ㎡) 2.5x2.5
    Sensor Type CMOS Global
    Shutter Global
    Sensor GMAX0505
    Frame Rate(FPS) 150
    Sensor Format 1.1"
    Interface CXP-12
    Lens Mount M58*0.75
    Exposure Time 15μs~5s
    Image Format Mono8/10/12
    Gain(dB) 1~100
    Dynamic Range(dB) 63dB
    Power Supply DC 24V power supply over 12 Hirose connector
    Weight 890g
    Power Consumption(W) 24V≈19.4W
    Temperature Storage temperature:-30℃~ + 80℃; Operation temperature: 0℃~+50℃
    GPIO 3 configurable input/output without opto isolation; 1 RS232 serial portt

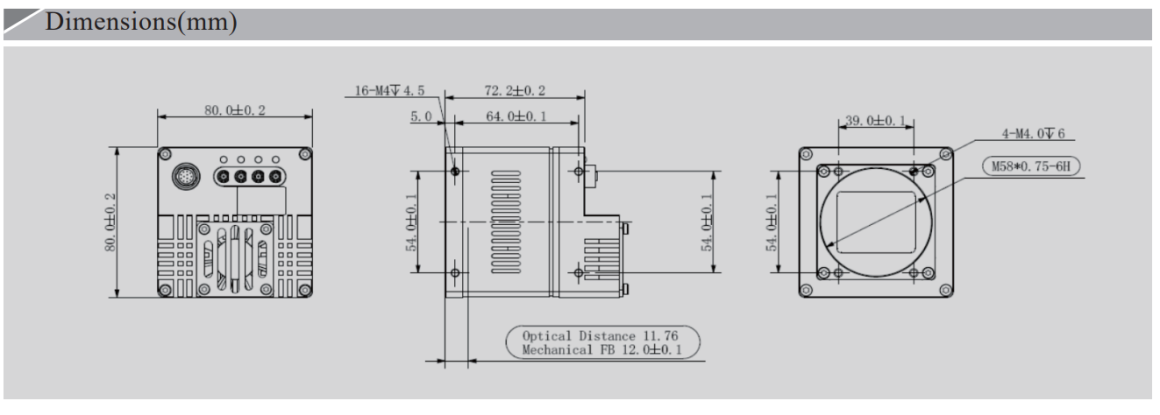

    Dimensions 80mm×80mm×72mm
    Conformity Compatible with the CoaxPress protocol and GenlCam standands
    Mono/Color M

    size-industrial-high-resolution-large-format-cameras-opt-cm2500-xm-04
