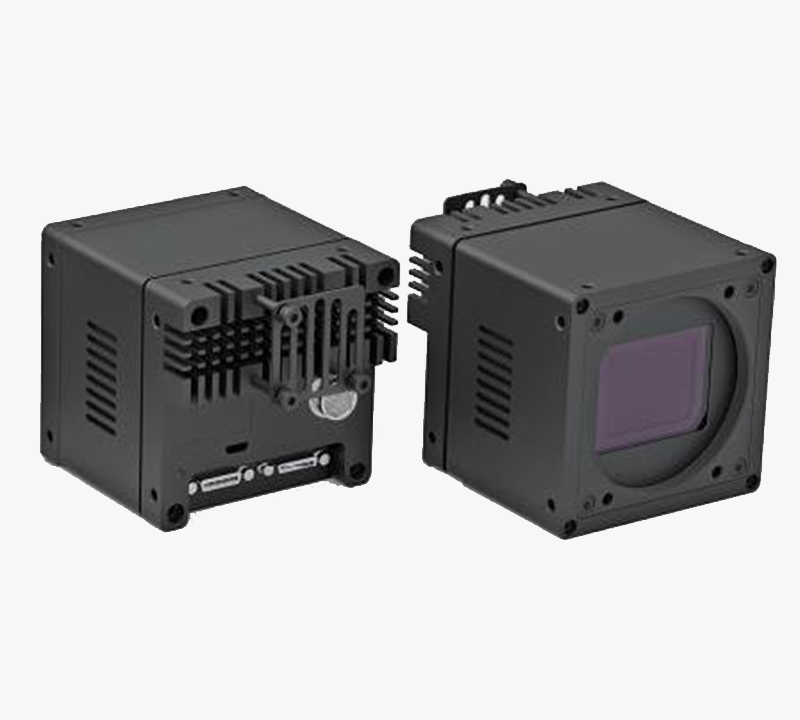

Industrial High Resolution Large Format Cameras OPT-CM3100-GM-04
- Sony CMOS sensor,Global Shutter,APS-C sensor size.
- Support FFC function and enabled excellent image quality.
- Own patented sensor flatness adjustment solution.
- Excellent thermal control design to maintain stable temperature.
- GigE interface provides 1Gbps bandwidth, with max 100m transmission.
- Conforms to GigE Vision V2.0 protocol and GenICam standard.
- DC 24V wide range power supply.
- Conforms to CE,FCC and RoHS certifications.
Features
| Model | OPT-CM3100-GM-04 |
|---|---|
| Resolution | 6464×4852 |
| Pixel Size(μ㎡) | 3.45x3.45 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | IMX342 |
| Frame Rate(FPS) | 3.6 |
| Sensor Format | 22.3mm×16.6mm |
| Interface | GigE |
| Lens Mount | M58×0.75 |
| Exposure Time | 3μs~15s |
| Image Format | Mono8/10/10Packed/12/ 12Packed |
| Gain(dB) | x1~x32 |
| Dynamic Range(dB) | 73dB |
| Power Supply | Hirose connector 12V-24V DC |
| Weight | 487g |
| Power Consumption（W） | 24V≈7.86W |
| Temperature | Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO | 12 pin Hirose: 3 Opto-isolated input, 3 Opto-isolated output, 1 RS232 serial port |
| Dimensions | 72mm×72mm×64mm |
| Conformity | GigE Vision V2.0 and GenlCam |
| Mono/Color | M |
