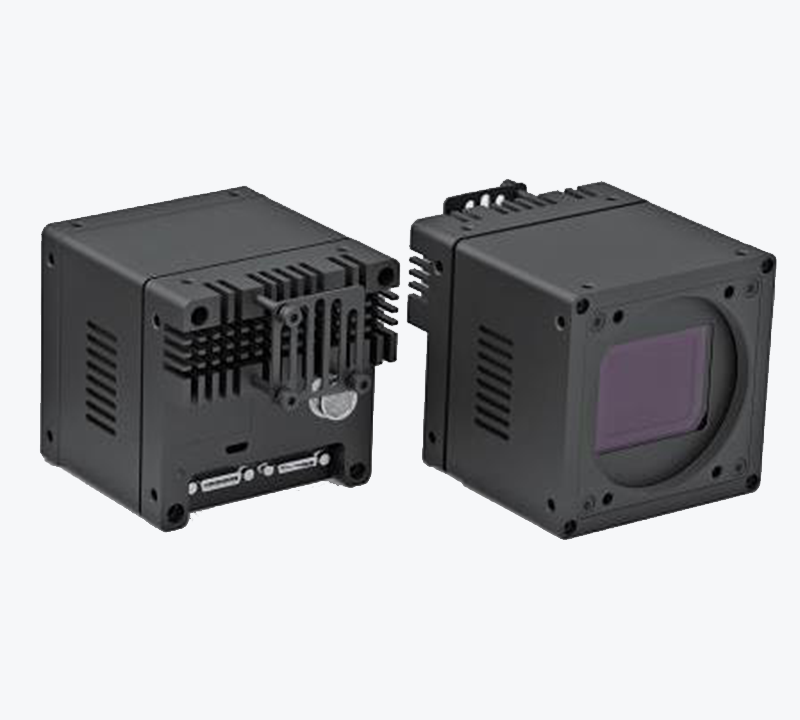

Industrial High Resolution Large Format Cameras OPT-CM6500-LM-04
- Compatible with Camera Link （SDR） protocol and GenlCam standard.
- Support FFC function,provide more uniform picture quality.
- Support user-defined ROI，vertical mirror.
- Conform to CE,FCC,KC,RoHS certifications.
- Software trigger/Hardware trigger/Free run mode.
- Support DC 24V wide voltage power supply.
Features
| Model | OPT-CM6500-LM-04 |
|---|---|
| Resolution | 9280×6992 |
| Pixel Size(μ㎡) | 3.2x3.2 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | GMAX3265 |
| Frame Rate(FPS) | 12.5 |
| Sensor Format | 37.4mm |
| Interface | Camera Link (SDR) |
| Lens Mount | M58*0.75 |
| Exposure Time | 16μs~15s |
| Image Format | Mono8 |
| Gain(dB) | x1~x32 |
| Dynamic Range(dB) | 66dB |
| Power Supply | DC power supply by Hirose connector, voltage range from 24V |
| Weight | 490g |
| Power Consumption（W） | 24V≈6.83W |
| Temperature | Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO | 3 X Optp-isolated input,3 X Opto-isolated output,1 X RS232 |
| Dimensions | 72mm×72mm×65mm |
| Conformity | Compatible with Camera Link（SDR） V2.0 Protocol and GenICam standard; |
| Mono/Color | M |
