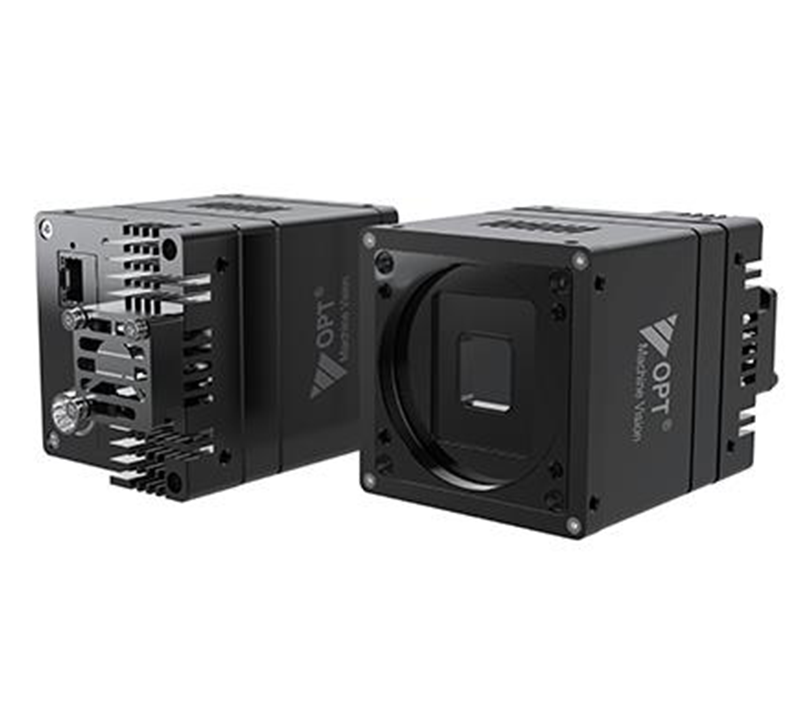

Industrial High Resolution Large Format Cameras OPT-CM6500-XGM-04
- 10GigE interface provides 10G bps bandwidth.
- Support software trigger, hardware trigger and free run modes.
- Support customized ROI,horizontal morroring and vertical mirroring functions.
- Supports auto-exposure adjustment, auto-gain adjustment, auto-black level correction,gamma correction,LUT and other ISP functions.
- Support the fan speed adaptivity function for setting the sensor target temperature.
- Supports for a 24V voltage.
Features
| Model |
OPT-CM6500-XGM-04 |
| Resolution |
9344×7000 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX3265 |
| Frame Rate(FPS) |
17.4 |
| Sensor Format |
37.4mm |
| Interface |
10 GigE |
| Lens Mount |
M58*0.75(FBL 12) |
| Exposure Time |
16μs~15s |
| Image Format |
Mono8 |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
DC via Hirose interface DC voltage 24V |
| Weight |
600g |
| Power Consumption（W） |
24V≈19.4W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12-pin Hirose connector includes external power supply, 3-opto isolated inputs and 3-opto isolated outputs |

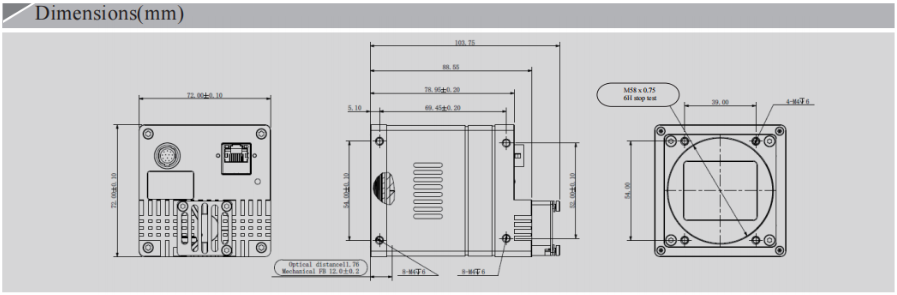

| Dimensions |
72mm×72mm×78.95mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
M |
