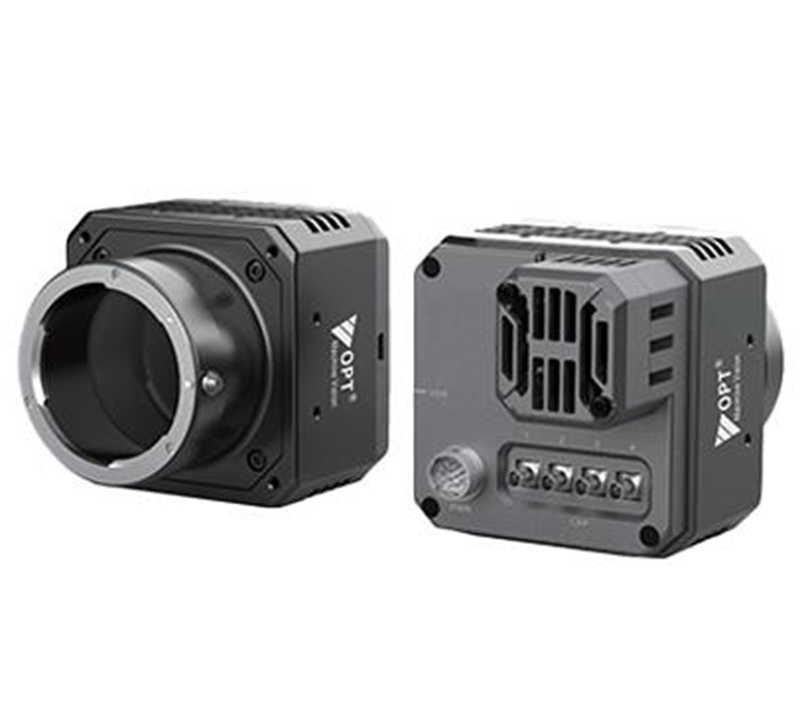

Industrial High Resolution Large Format Cameras OPT-CM6500-XM-1601
- Resolution of 9344× 7000, and pixel size of 3.2 µm ×3.2 µ㎡.
- Adopts global shutter CMOS to provide high dynamicrange, SNR, and high-quality image.
- Adopts CXP-6 interface to transmit data.
- Supports Off, Once, and Continuous exposure mode.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CM6500-XM-1601 |
| Resolution |
9344×7000 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
Gpixel GMAX3265 |
| Frame Rate(FPS) |
31.5 |
| Sensor Format |
29.9mm×22.4mm |
| Interface |
CXP-6 |
| Lens Mount |
F-mount: optical back focal length: 46.5 mm (1.8") |
| Exposure Time |
14 μs to 10 sec |
| Image Format |
Mono 8/10/12 |
| Gain(dB) |
1.25x to 6x |
| Dynamic Range(dB) |
66 dB |
| Power Supply |
24 VDC |
| Weight |
F-mount with fan: approx. 500g (1.1 lb.) |
| Power Consumption（W） |
Typ. 10.5 W@24 VDC |
| Temperature |
Working temperature: 0 ℃to 50 ℃ (32 °F to 122 °F),Storage temperature: -30 ℃ to 70 ℃(-22 °F to 158 °F) |
| GPIO |
12-pin Hirose connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |

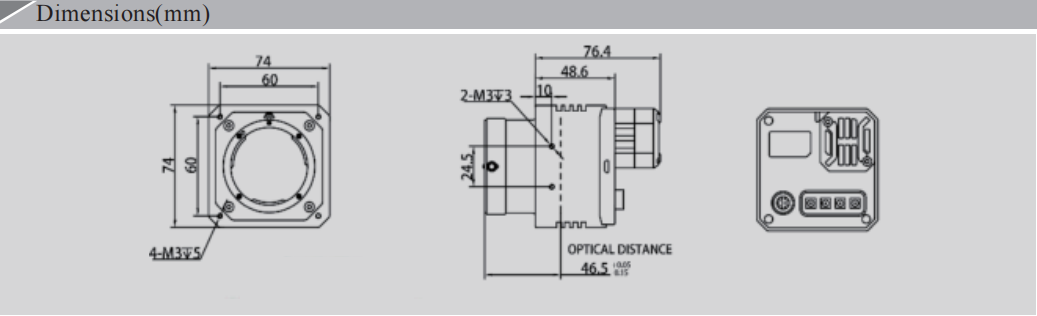

| Dimensions |
F-mount with fan: 74 mm × 74 mm × 76.4 mm (2.9" × 2.9" × 3.0") |
| Mono/Color |
M |
