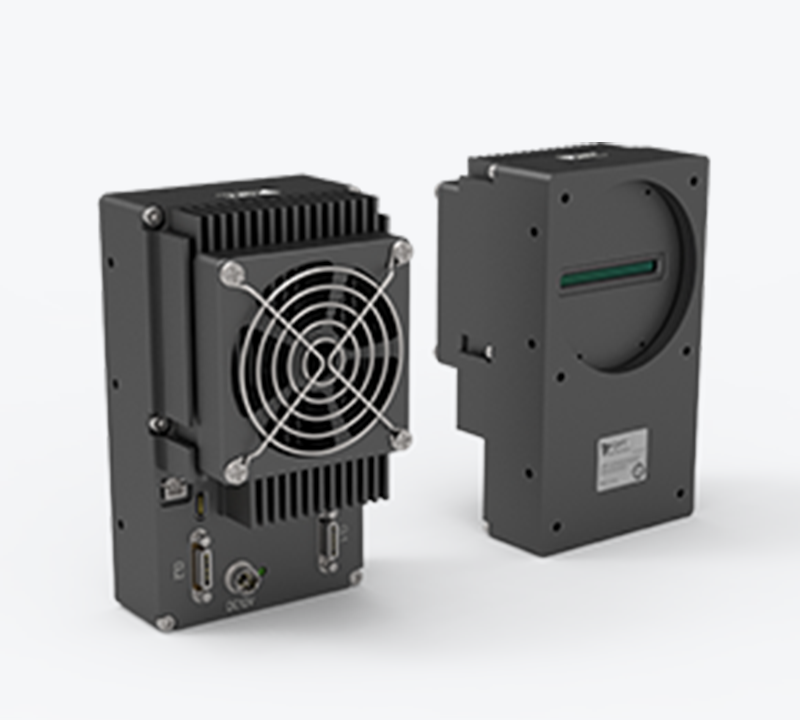

Industrial Line Scan Cameras OPT-CL1-C8-L-01
- 8320 * 12 pixels Global Shutter CMOS.
- Line Rate up to 33kHz.
- Camera Link data interface.
- Flexible timing function.
- High sensitivity and low noise.
- Bidirectional scanning technology.
- Support ROI function.
- Automatic white balance / camera end flat field correction.
Features
| Model | OPT-CL1-C8-L-01 |
|---|---|
| Resolution | 8320 × 12 (4 rows per RGB) |
| Pixel Size(μ㎡) | 5*5 |
| Sensor Type | Line |
| Line Frequency（KHz） | 33 |
| Interface | Camera Link (SDR) |
| Lens Mount | M72*0.75 |
| Exposure Time | 1μs - 63997μs（step：1μs） |
| Gain(dB) | 1x-4x（analogue gain）1x-8x（digital gain） |
| Dynamic Range(dB) | ≥58 dB |
| Power Supply | Hirose HR10A (6-pin) DC 12V(±10%) 3.5A |
| Power Consumption（W） | 18 W |
| Temperature | Storage Temperature :-20 ~ 75℃;Operating Temperature :0~55℃ |
| Dimensions | 79.6mm(W) x 139.5mm(H) x 71.5mm(D)（Excluding contact ring) |
| Mono/Color | C |
