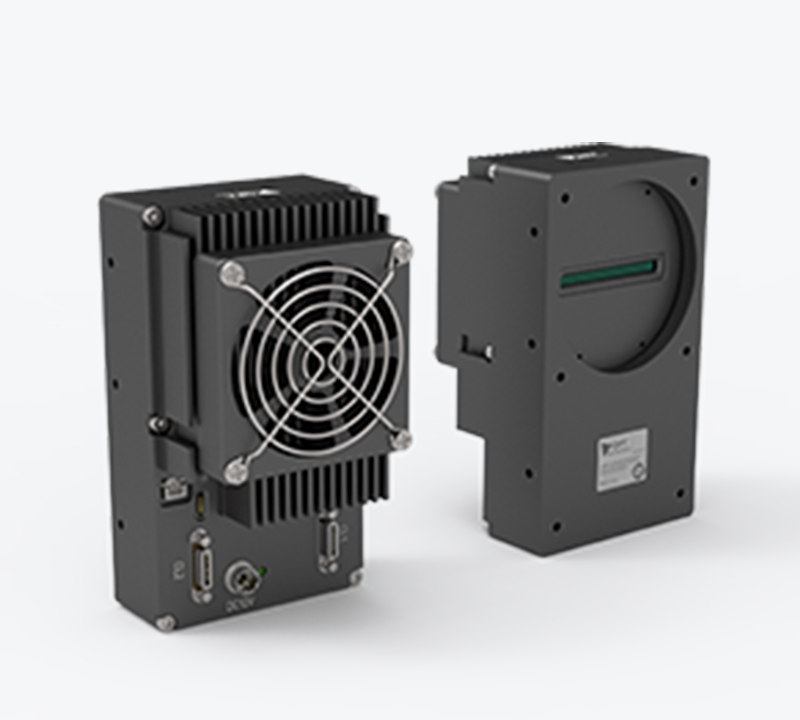

Industrial Line Scan Cameras OPT-CLC1608-L30-17
- Quadlinear color tdi sensor.
- High sensitivity and low noise.
- Line Rate up to 30KHz.
- True exposure control.
- Bidirectional sacanning.
- Auto White Balance/FFC/ROI.
Features
| Model |
OPT-CLC1608-L30-17 |
| Resolution |
8320 × 16 (4 rows per RGBC) |
| Pixel Size(μ㎡) |
5*5 |
| Sensor Type |
Line |
| Sensor |
CMOS |
| Line Frequency（KHz） |
30 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72*0.75/F Mount (optional) |
| Exposure Time |
1μs - 63997μs |
| Gain(dB) |
1x-4x（analogue gain）1x-8x（digital gain） |
| Dynamic Range(dB) |
≥62 dB |
| Power Supply |
Hirose HR10A (6-pin) DC 12V（±10%） 3A |
| Power Consumption（W） |
18W |
| Temperature |
Storage Temerature :-20 ~ 75℃;Operating Temperature :0~65℃ |

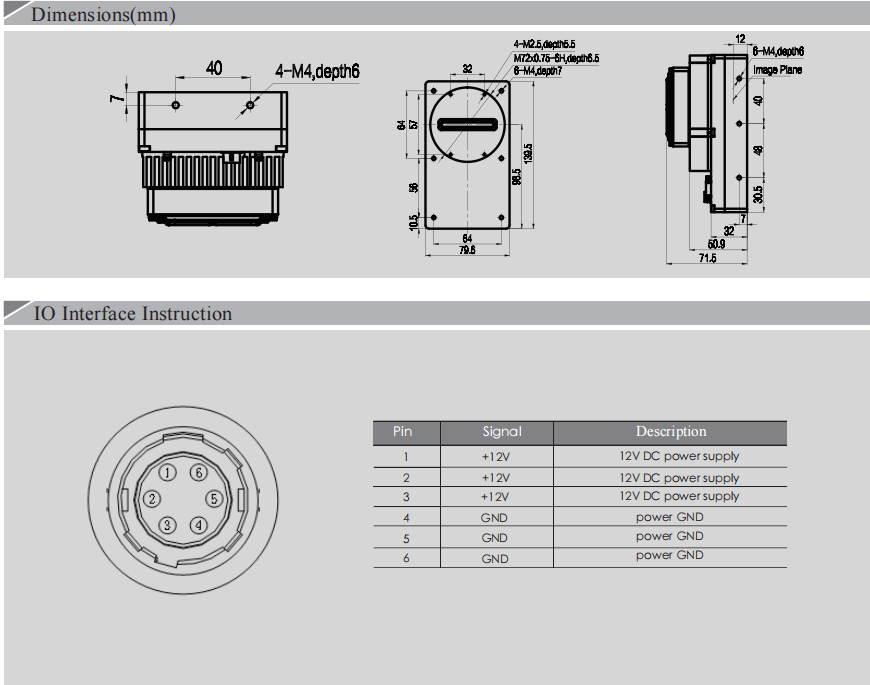

| Dimensions |
79.6mm(W) x139.5mm(H)x71.5mm(D) |
| Mono/Color |
C |
