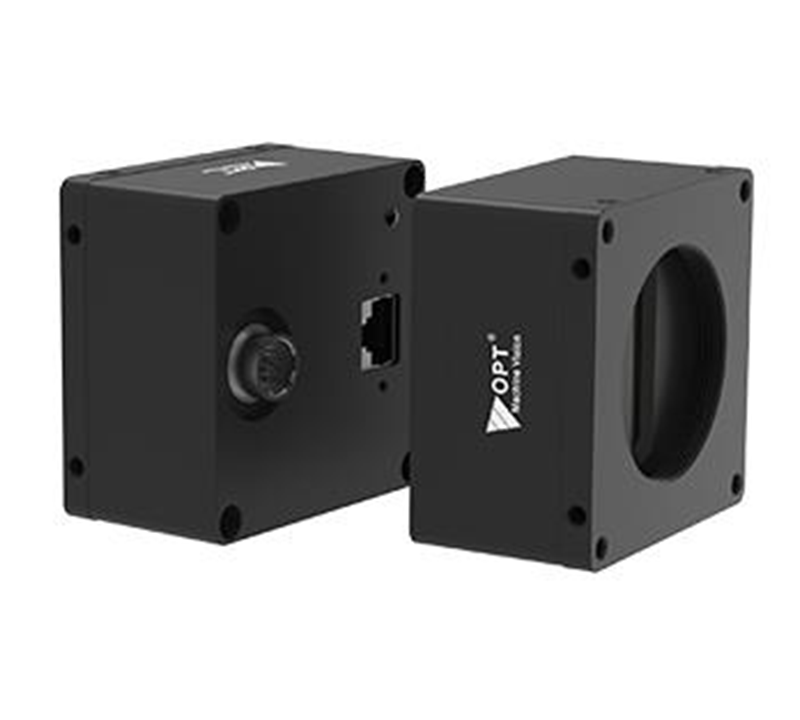

Industrial Line Scan Cameras OPT-CLC202-G49-04
- Support brightness enhancement,gamma correction and other ISP functions.
- Supprort PRNU correction in target bright field.
- Support various image formats of output data.
- Support DC12V-24V wide-range power supply.
- Compatible with GigE Vision protocol and GenICam standard.
- Conform to CE、FCC、ROHS certification.
Features
| Model |
OPT-CLC202-G49-04 |
| Resolution |
2048 × 2 |
| Pixel Size(μ㎡) |
14*14 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
49 |
| Interface |
GigE |
| Lens Mount |
M42×1，FBL12.00mm |
| Exposure Time |
8μs~100ms |
| Image Format |
BayerRG8/BayerRG10/Bayer RG12/RGB8Packed/YUV422Packed |
| Dynamic Range(dB) |
66dB |
| Power Supply |

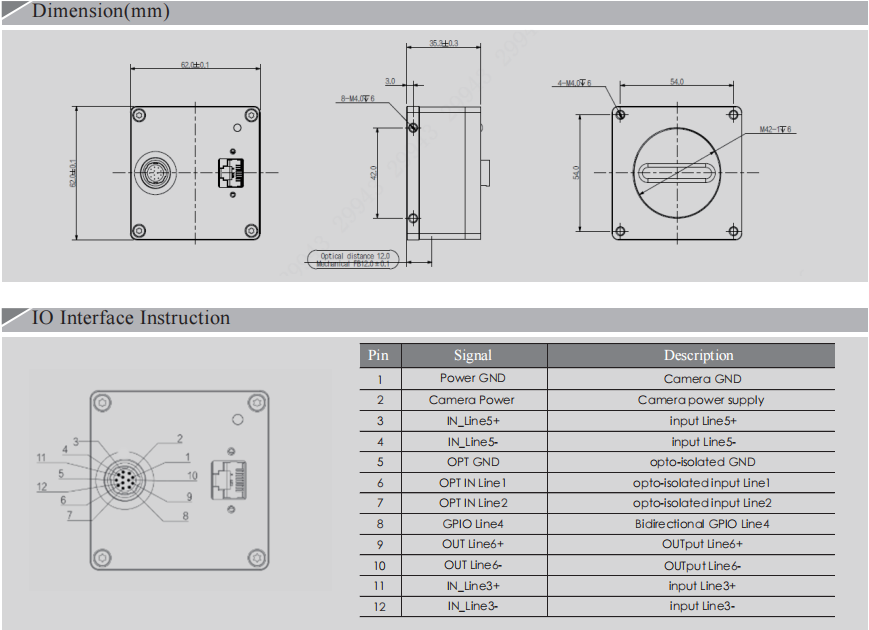

12 pin Hirose connector provides power supply and I/O ：2 differential input,2 single-end inputs,1 differential output and 1GPIO |
| Weight |
0.245kg |
| Power Consumption（W） |
4.5W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12-pin Hirose connector provide power supply and I/O,2 differential input,2 single-ended input,1 GPIO |
| Dimensions |
62mm×62mm×35.3mm |
| Conformity |
GigE Vision and GenlCam |
| Mono/Color |
C |
