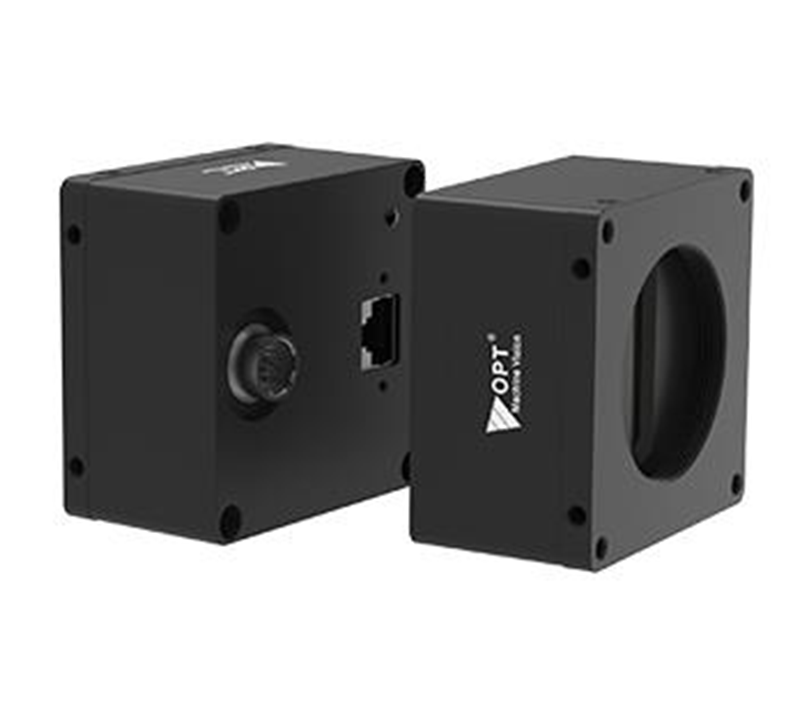

Industrial Line Scan Cameras OPT-CLC204-G28-04
- Support brightness enhancement,gamma correction LUT and otherISP functions.
- The brightness field correction of target brightness is suppotted.
- Support a variety of image data format output.
- Support DC12V-24V wide voltage power supply.
- Comply with CE、FCC 、ROHS certification.
Features
| Model |
OPT-CLC204-G28-04 |
| Resolution |
4096 × 2 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
28 |
| Interface |
GigE |
| Lens Mount |
M42×1，FBL12.00mm |
| Exposure Time |
8μs~100ms |
| Image Format |
BayerRG8/BayerRG10/Bayer RG12/RGB8Packed/YUV422Packed |
| Dynamic Range(dB) |
66dB |
| Power Supply |
power supply through 12 core Hirose interface,DC12V-24V |
| Weight |
0.245 kg |
| Power Consumption（W） |
12V≈4.5W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12-pin Hirose connector provide power supply and I/O,2 differential input,2 single-ended input,1 GPIO |

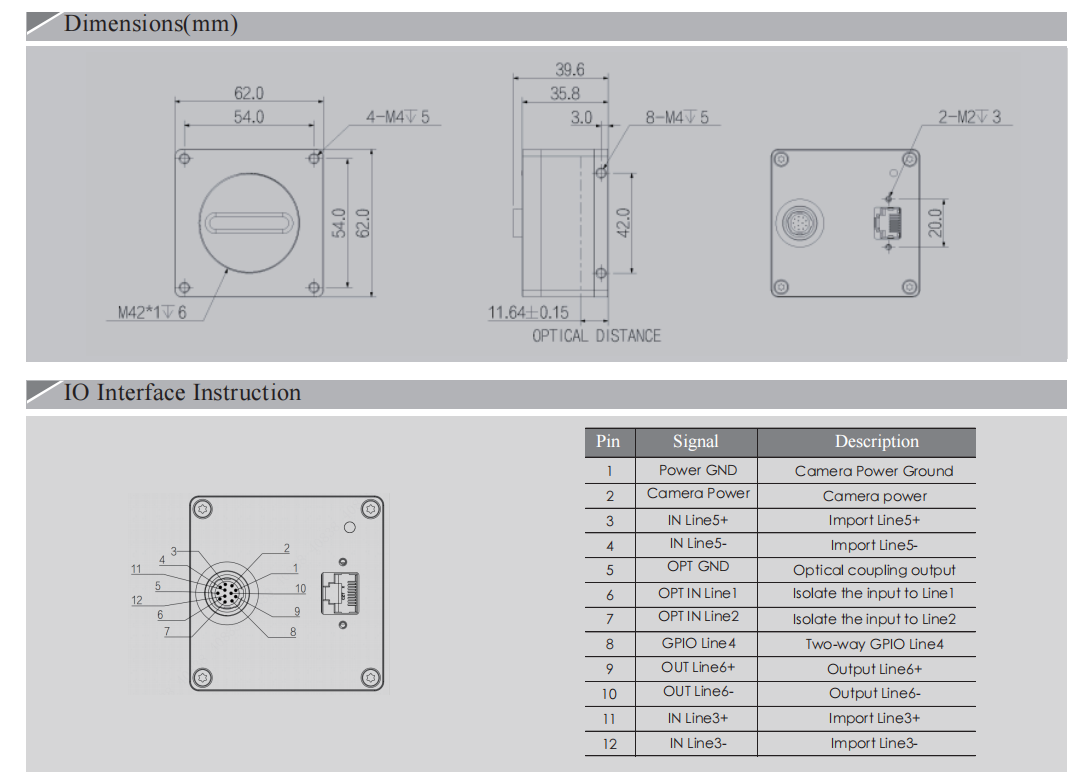

| Dimensions |
62mm×62mm×35.8mm |
| Conformity |
GigE Vision V2.0 and GenlCam |
| Mono/Color |
C |
