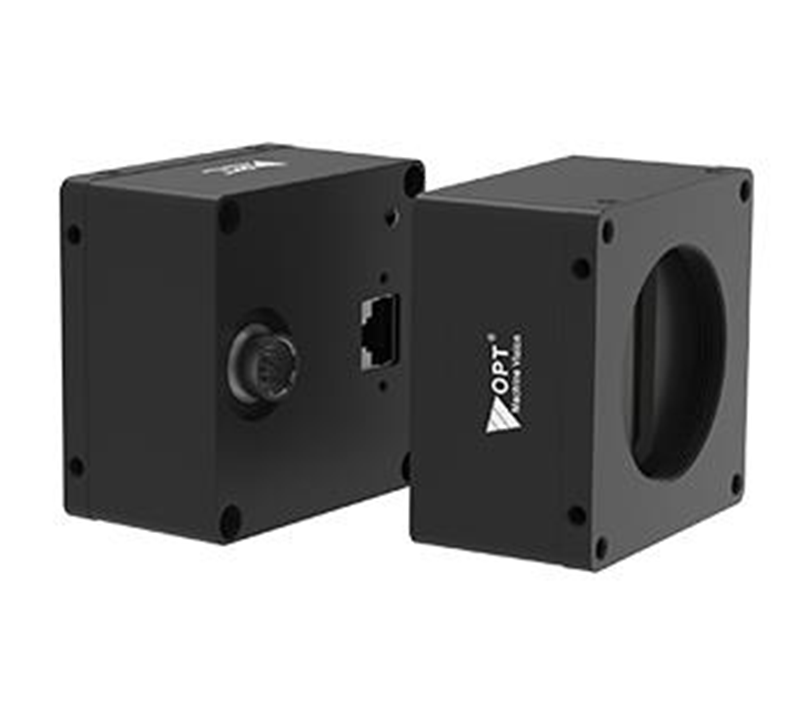

Industrial Line Scan Cameras OPT-CLM104-G28-04
- Support for brightness enhancement,gamma correction and other ISP function.
- Support multiple image data format output.
- Support for DV 12V-24V wide-voltage power supply.
- Compatiple with the GigE Vision protocol and GenICam standards.
- Compliance with CE，FCC，RoHS certification.
Features
| Model |
OPT-CLM104-G28-04 |
| Resolution |
4096 × 1 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
28 |
| Interface |
GigE |
| Lens Mount |
M42×1，FBL12.00mm |
| Exposure Time |
8μs~100ms |
| Image Format |
Mono8/10/12/10Packed/ 12Packed |
| Dynamic Range(dB) |
66dB |
| Power Supply |
12-pin Hirose connector DC 12V-24V |
| Weight |
0.245kg |
| Power Consumption（W） |
12V≈4.5W |
| Temperature |
Storage temperature：-30℃~+80℃；Operating temperature：-30℃~+50℃ |
| GPIO |
12-pin Hirose connector provide power supply and I/O,2 differential input,2 single-ended input,1 GPIO |

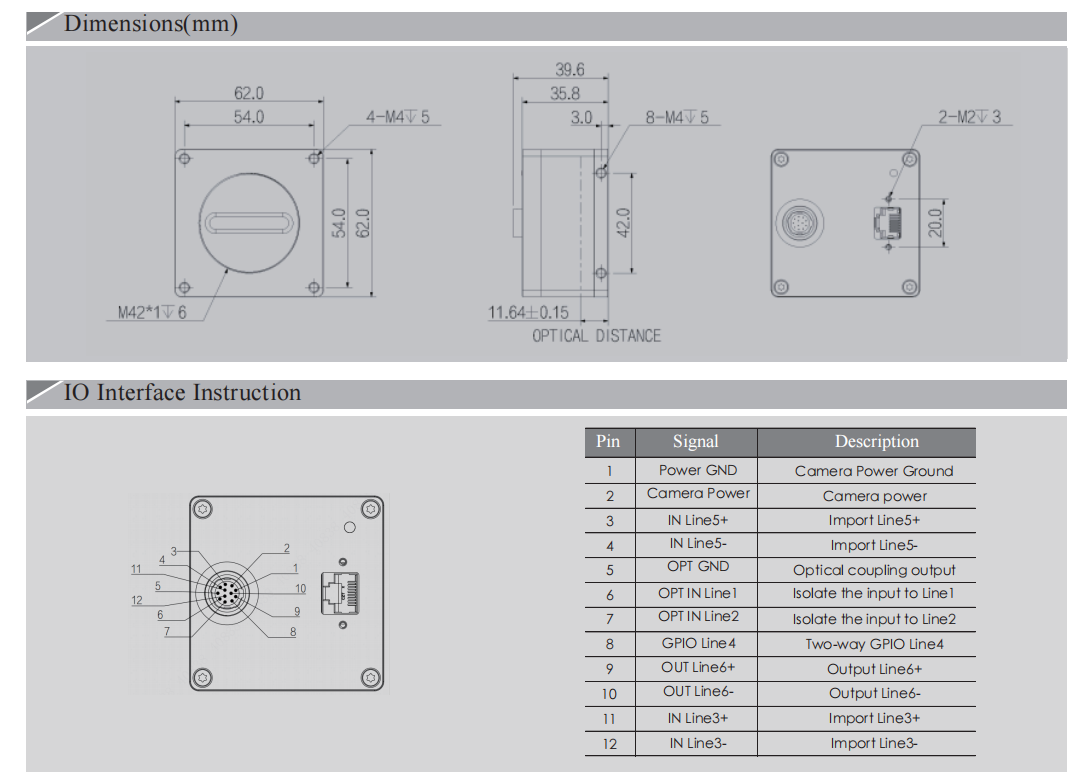

| Dimensions |
62mm×62mm×35.8mm |
| Conformity |
GigE Vision and GenlCam |
| Mono/Color |
M |
