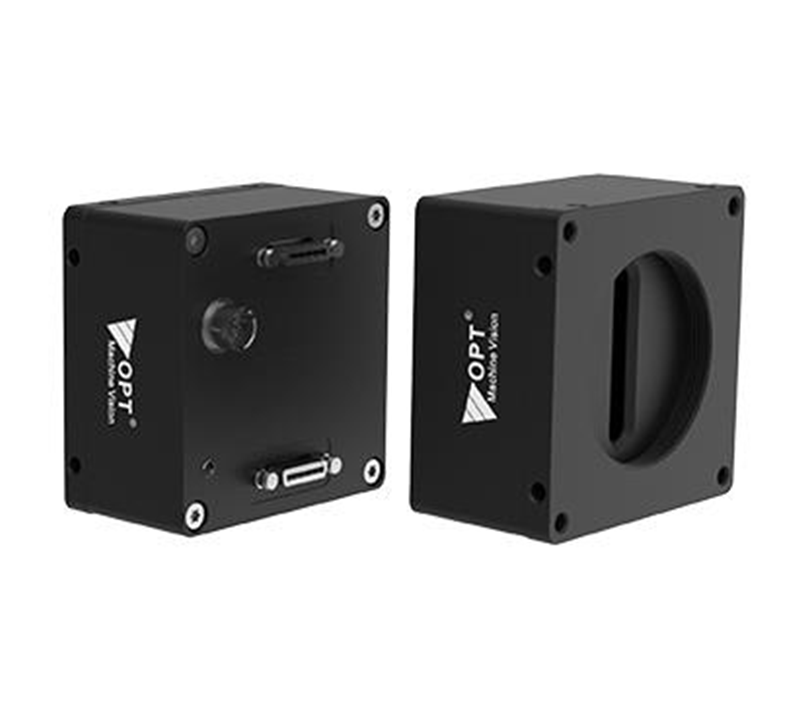

Industrial Line Scan Cameras OPT-CLM104-L120-04
- Support for brightness enhancement,gamma correction and other ISP function.
- Support multiple image data format output.
- Support for DV 12V-24V wide-voltage power supply.
- Compatiple with the Camera Link protocol and GenICam standards.
- Compliance with CE，FCC，RoHS certification.
Features
| Model |
OPT-CLM104-L120-04 |
| Resolution |
4096 × 1 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
120 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M42×1，FBL12.00mm |
| Exposure Time |
8μs~100ms |
| Image Format |
Mono8/Mono10 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
Power supplied via a 6-core Hirose interface，DC 12V-24V |
| Weight |
0.252kg |
| Power Consumption（W） |
4.5W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
Camera Link，or camera control and data transfer；support Full，Medium，Base/Deca model |

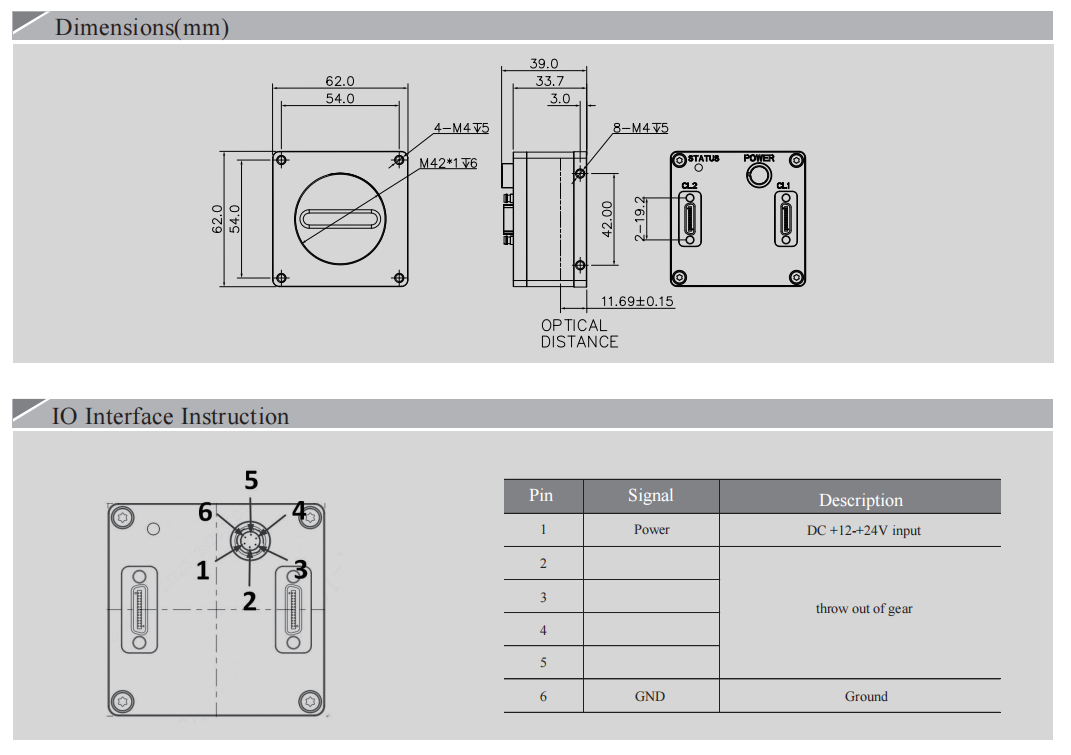

| Dimensions |
62mm×62mm×33.68mm |
| Conformity |
Camera Link and GenlCam |
| Mono/Color |
M |
