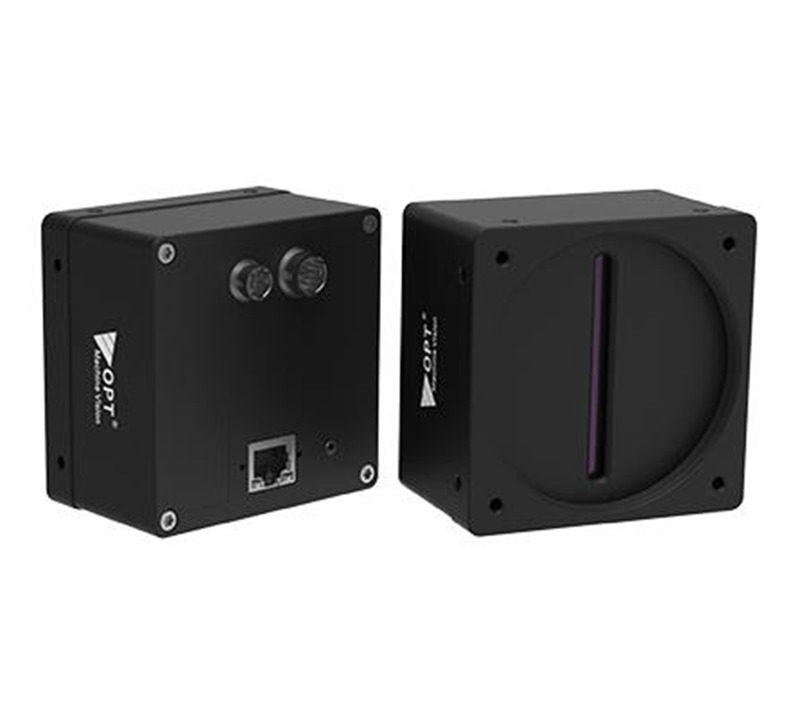

Industrial Line Scan Cameras OPT-CLM108-G13-04
- Softwore trigger/External trigger/Free run mode.
- Support brightness enhancement,gamma correction,LUT,etc.
- Support flat field correction for multple user groups.
- Support for multiple image data format output,ROI,and Binning.
- Cmpatible with the GigE Vision portocol and GenICam standards.
- Conform DC 12-24V wide-range power supply.
- Conform to CE,FCCand RoHS certififications.
Features
| Model | OPT-CLM108-G13-04 |
|---|---|
| Resolution | 8192 × 1 |
| Pixel Size(μ㎡) | 7*7 |
| Sensor Type | Line |
| Line Frequency（KHz） | 13 |
| Interface | GigE |
| Lens Mount | M72×0.75，FBL12.00mm |
| Exposure Time | 8μs~1s |
| Image Format | Mono8/10/10Packed/12/ 12Packed |
| Dynamic Range(dB) | 65.9dB |
| Power Supply | DC power supply by 6 Hirose connector , with voltage range from 12V to 24V |
| Weight | 0.39kg |
| Power Consumption（W） | ≤6W，12V |
| Temperature | Storage temperature：-30℃~+80℃；Operating temperature：-30℃~+50℃ |
| GPIO | 6-pin Hirose connector for external power supply; 12-pin Hirose external trigger connector,2 channels for RS422/singleEnded input 、 2channels for RS422/singleEnded output,1 channel for Rs422/ singleEnded is able to configure input /output,and 1 channel for GPIO |
| Dimensions | 80mm×80mm×48mm |
| Conformity | GigE Vision and GenlCam |
| Mono/Color | M |
