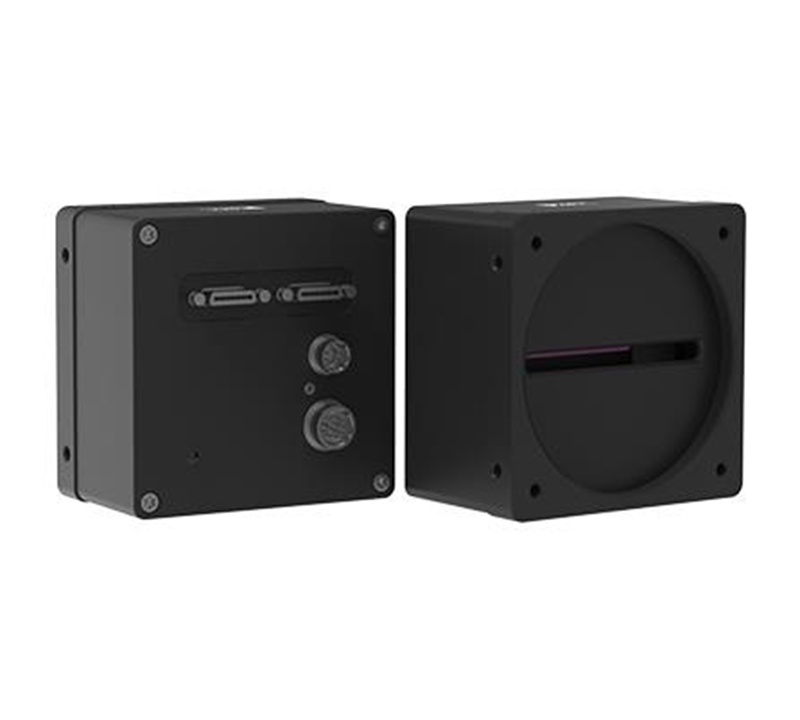

Industrial Line Scan Cameras OPT-CLM108-L70-04
- Software trigger/external trigger/free run mode.
- Support brightness enhancement,gamma correction,etc.
- Support flat multiple image data format output ,etc.
- Supports DC 12V-24V wide voltage power supply.
- Conform to Camera Link protocol and Cenlcam standard.
- Conform to CE,FCC and RoHS certifications.
Features
| Model |
OPT-CLM108-L70-04 |
| Resolution |
8192 × 1 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
70 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72×0.75 |
| Exposure Time |
8μs~100ms |
| Image Format |
Mono8/10 |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
6-Core Hirose interface DC power supply,with a voltage range from 12V-24V |
| Power Consumption（W） |
6W |
| Temperature |
Storage temperature: - 30℃~+80℃；Operation temperature: - 30℃~+50℃ |

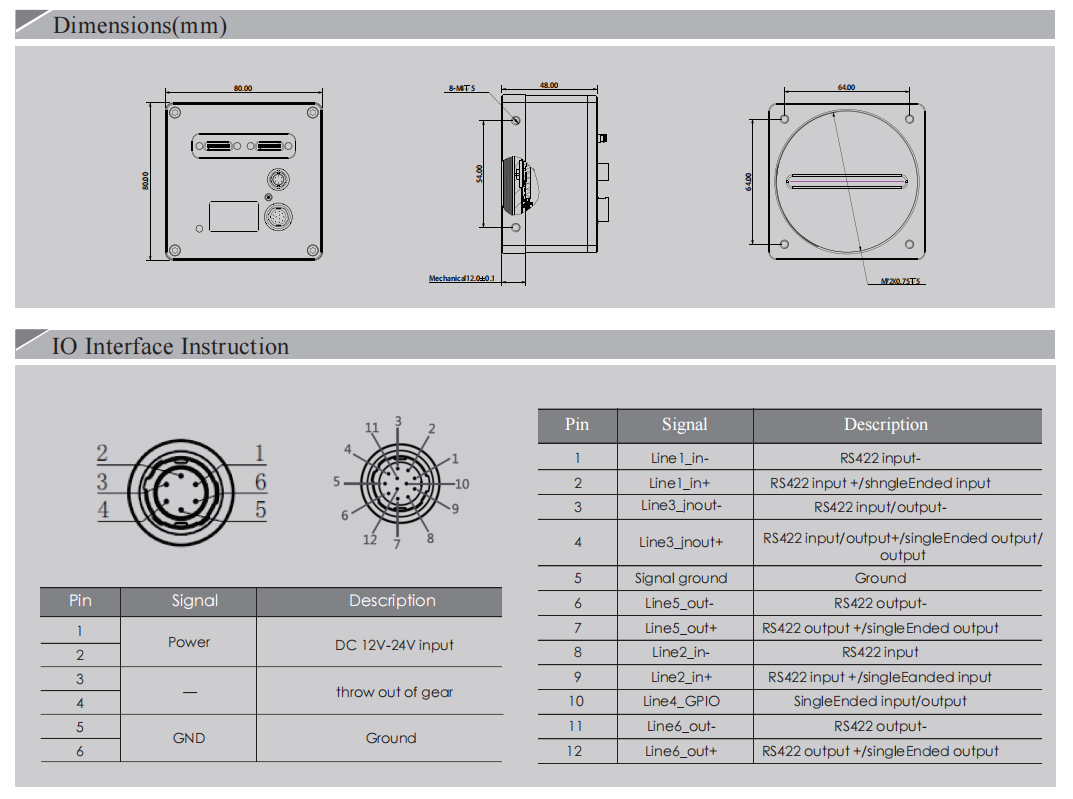

| Dimensions |
80mm×80mm×48mm |
| Conformity |
Camera Link and GenlCam |
| Mono/Color |
M |
