Camera & Optics

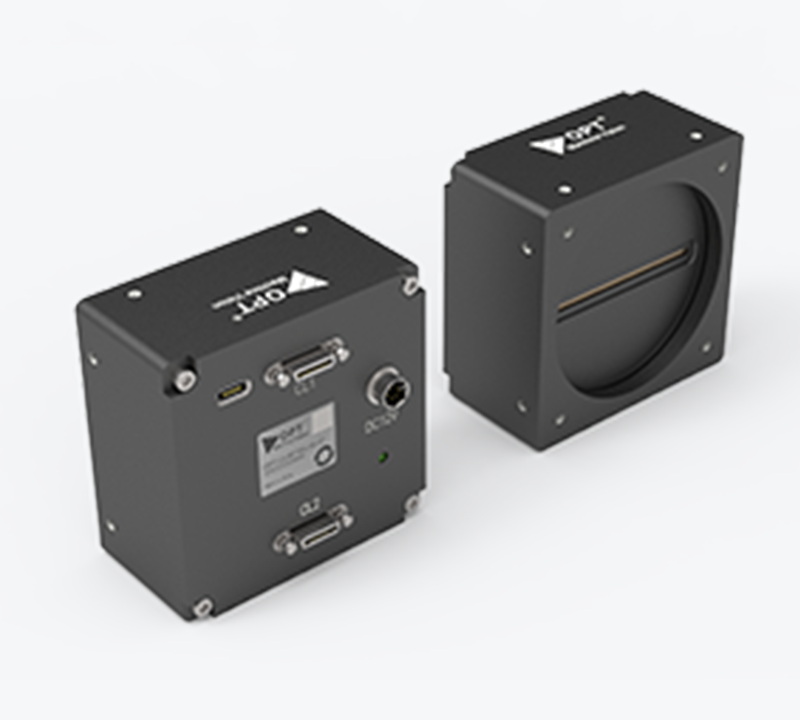

Industrial Line Scan Cameras OPT-CLM116-L40-17
- Serial port control command,GUI configuration tool,optional.
- Up to 16,384 pixels.
- Up to 51KHz Line Rate.
- High sensitivity and Low noise.
- Carema Link interface.
- Internal tigger,External trigger,optional.
Features
| Model |
OPT-CLM116-L40-17 |
| Resolution |
16384 × 1 |
| Pixel Size(μ㎡) |
3.5*3.5 |
| Sensor Type |
Line |
| Sensor |
CMOS |
| Line Frequency（KHz） |
51 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72×0.75 |
| Exposure Time |
2.5μs - 1s |
| Gain(dB) |
1x-4x（analogue gain）0.01x - 8.00x（digital gain） |
| Dynamic Range(dB) |
>66dB |
| Power Supply |
Hirose HR10A (6-pin) DC 12V(±10%) 0.5A |
| Power Consumption（W） |
5 W |
| Temperature |
Storage Temerature :-20 ~ 75℃;Operating Temperature :0~65℃ |

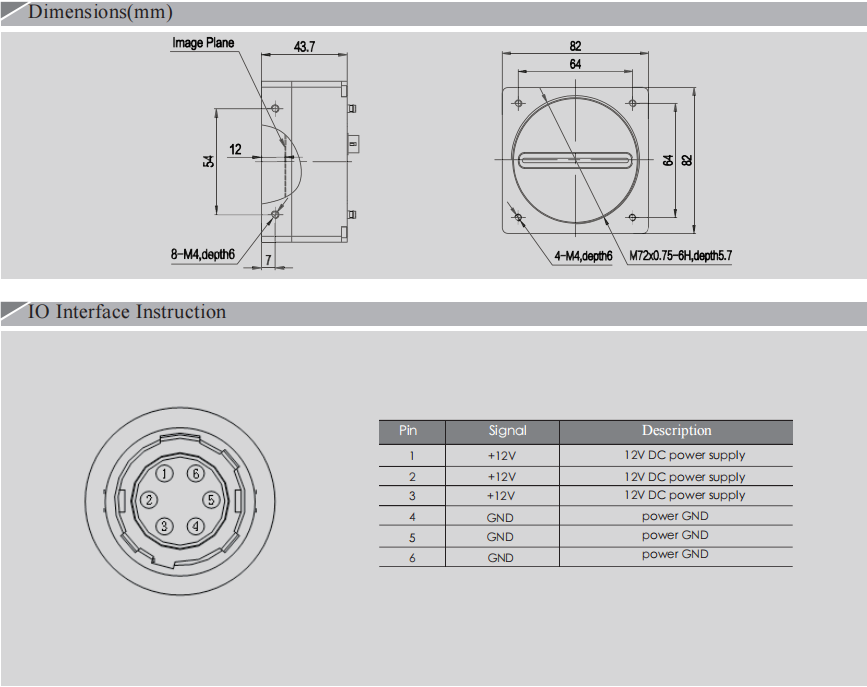

| Dimensions |
82.0mm(W) x 82.0mm(H) x 43.7mm(D) |
| Mono/Color |
|
